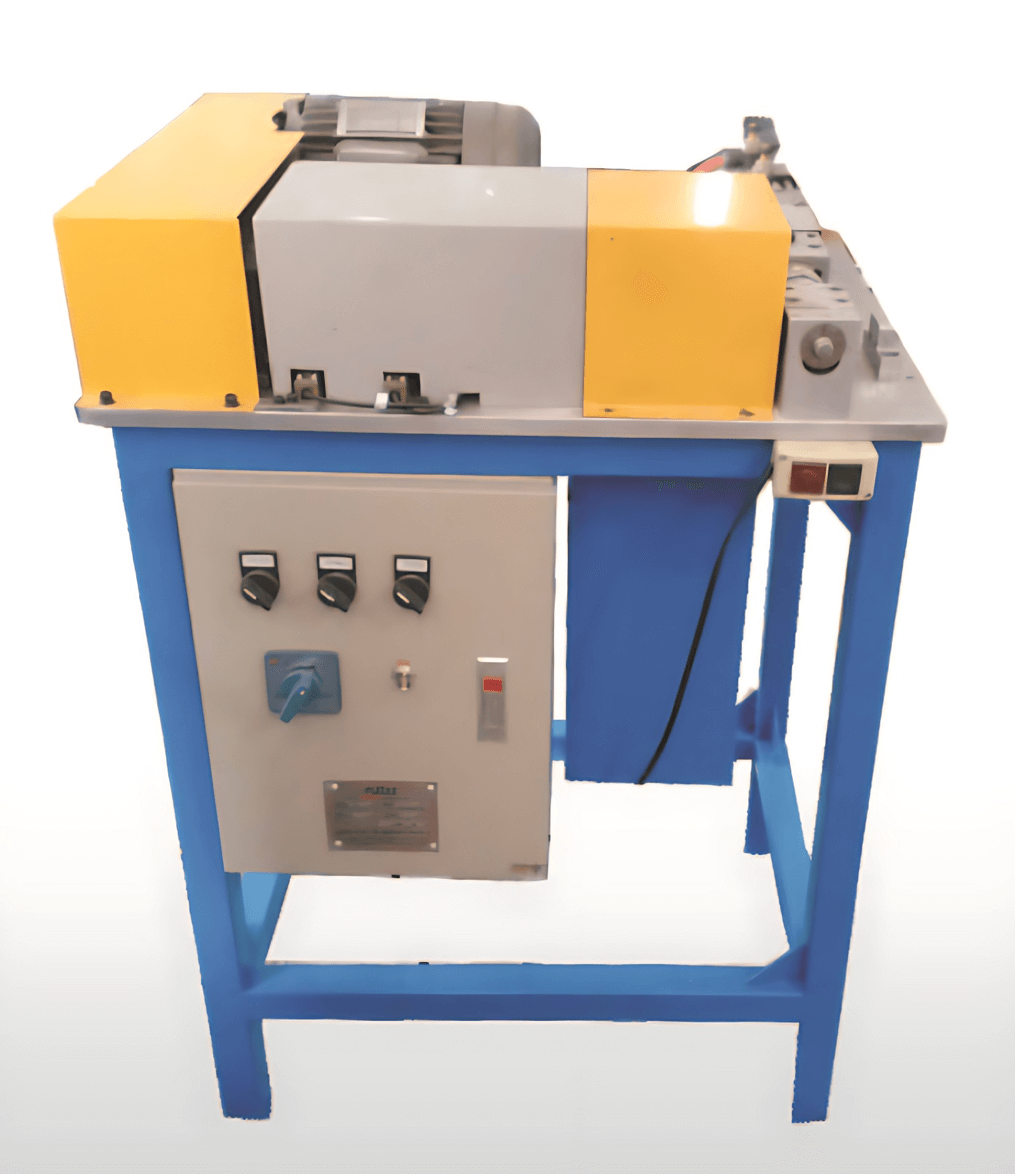

Zhenghe Intelligent ZH-121 Manual Turning Machine is designed to remove plastic plug from heating elements and cut heating elements to same length after rolling manually.
Pneumatic clamping and feeding.
Cutting tool moves forward, ensuring safety.
Hydraulic speed governor, controls the skinning speed.
Stable quality and easy operation.
DESCCRIPTION SPECIFICATION RELATED PRODUCTS TECH SUPPORT

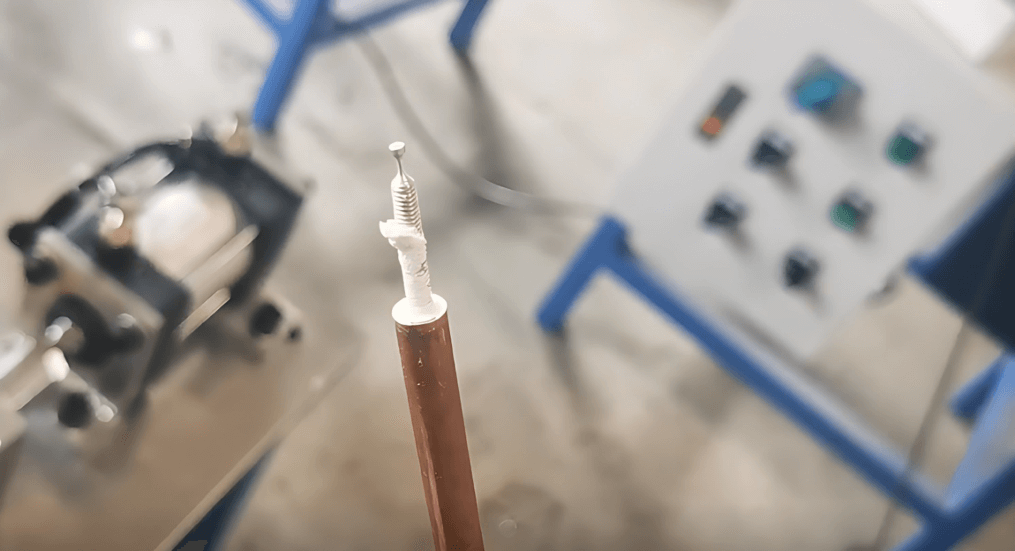

Zhenghe Intelligent ZH-121 Manual Turning Machine is designed to remove plastic plug from heating elements and cut heating elements to same length after rolling manually. The purpose for this machine is same as the ZH-159 Stretching machine which also makes tube length the same after rolling. The machine adopts cutting tool rotating, pneumatic clamping tube, pneumatic feeding tube in different speed, stable speed of oil pressure to avoid the shortages of old-fashioned turning machine: installation and clamping problems, difficult locating.
Functions:
1. Pneumatic clamping and feeding.
2. Cutting tool moves forward, ensuring safety.
3. Hydraulic speed governor, controls the skinning speed.
4. Stable quality and easy operation.
Main technical parameters:
1. Power supply: 3 phase 380V, 50Hz (can be custom-made).
2. Rated power: 0.8KW.
3. Air supply: 5-7kg/cm2.
4. Applicable tube diameter: 6mm-12mm.
5. Applicable tube length: ≥100mm.
6. Efficiency: 5000pcs/8h (below tube length 500mm).
7. Packing size (L*W*H): 700*800*1200 (mm).
8. Gross weight: 180kg.
Required information when ordering our ZH-121 Manual turning machine
*Tube diameters (after reduction) and tube thickness.
*Max. element length.
*Tube material.
*Electrical supply (for example, single phase 220v 50hz).
*To be supplied by customer before delivery: About 50 pieces heater for final adjustments.
Notes: All the information above, which may be subject to change, is offered solely for your reference, and should not be taken as a warranty or representation for which we assume any legal responsibility.
|
WARRANTY |
Machine for one-year, electric parts for half a year, wearing parts are not included. |
|
PAYMENT |
50% advance payment, 50% before shipment. |
|
DELIVERY TIME |
Normally in 60 days after getting advance payment and all the technical parameters we request. But it depends on how many machines you wish to purchase. |
|
PACKING DETAILS |
Merchandise is packed in sea worthy and weather proof firm wooden box. |
