1. The machine tool uses high-quality tough cast iron, achieving high-speed and high-precision processing performance.
2. The workbench adopts high-quality and precise grade OO granite, which has the characteristics of good insulation performance, corrosion resistance, and good wear resistance.
3. The up-and-down sliding door perfectly saves the space of the machine tool.
1. It is automatic skinning, plug removing, pin cutting, MgO powder digging.
2. Besides, new functions like pin chamfering, straight pipe marking, and so on can also be added.
3. It also can be custom-made according to different clients’ requirements.
1. Power supply: triphase 380V±10%/50Hz.
2. Power: 4.5KW.
3. Air supply:5-7kgf/cm2.
4. Applicable tube length: 300～1200mm.
5. Applicable tube diameter: Φ6.6-Φ8 (over this range can be custom-made).
6. Applicable termina
*Tube diameters (after reduction) and tube thickness.
*Minimum and maximum element tube length.
*Tube material.
*Specific terminal pin diameters and pin outside tube end length after turning.
*Specific pin outside tube end length after rolling.
*MgO powder digging length.
*Electrical supply (for example,single phase 220v 50hz).
*To be supplied by customer before delivery: About 50 pieces heater for final adjustments.

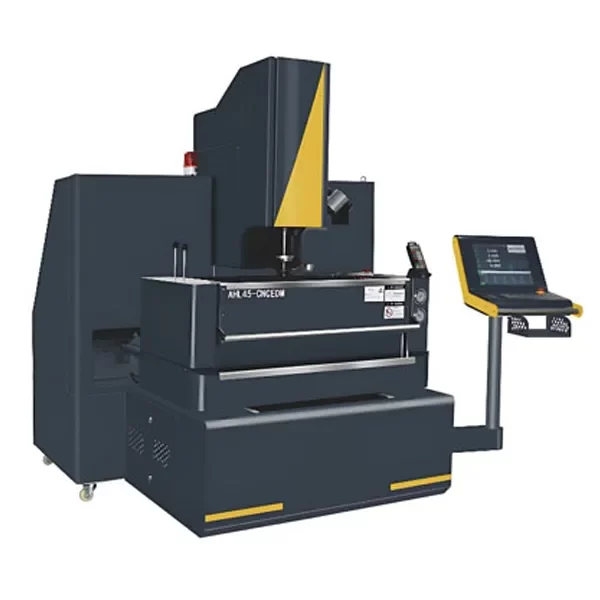

| Items | ZH-AHL45 |
|---|---|
| Workbench size (L*W*H) | 700*400mm |
| Processing oil tank internal dimension (L*W*H) | 1000*600*380mm |
| Working distance (X/Y/Z axis) | 450*350*300mm |
| Max. electrode weight | 400kg |
| Max. load | 500kg |
| Distance between workbench and electrode tip (max.-min.) | 140–440mm |
| Located precision | 5μm / arbitrary 100mm |
| Repeat located precision | 2μm |
| Machine weight | ≈2200kg |
| Machine size (L*W*H) | 2500*2100*2350mm |
| Processing oil filtration method | Exchangeable paper core filter |
| CNC pulse power supply unit | A1–50 |
| Max. processing current | 50A |
| Total input power | 10kw |
| Input power supply | 380V (domestic) |
| Optimum surface roughness | Ra0.1μm |
| Min. electrode loss | 0.001 |
| Max. productivity | 800mm³/min |
| Standard processes | Copper/Steel, Fine Copper/Steel, Steel Tungsten/Steel, Graphite/Steel, Fine Copper Tungsten/Steel, Steel/Steel, Copper Tungsten/Cemented Carbide, Copper/Aluminum, Graphite/Heat-Resistant Alloy, Graphite/Titanium, Copper/Copper |
| Axis compensation | Step error compensation and clearance compensation for each axis |
| Max. number of control axis | Three axes (standard): X/Y/Z axes operate simultaneously |
| Min. drive unit | 0.1μm |
| Input method | Touch Screen, USB Flash Drive, Keyboard |
| Display mode | 17-inch LCD |
| Head-control box | Standard point action (multistage switching) |
| Position instruction mode | Both absolute & incremental |
| WARRANTY | Machine for one year, electric parts for half a year, wearing parts are not included. |
