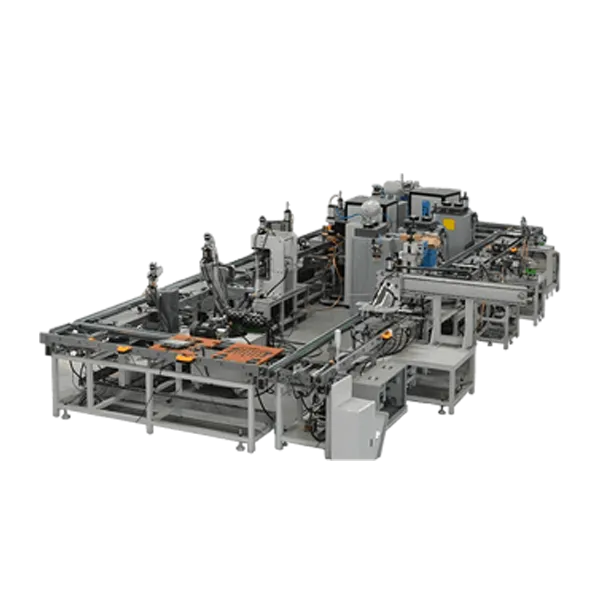

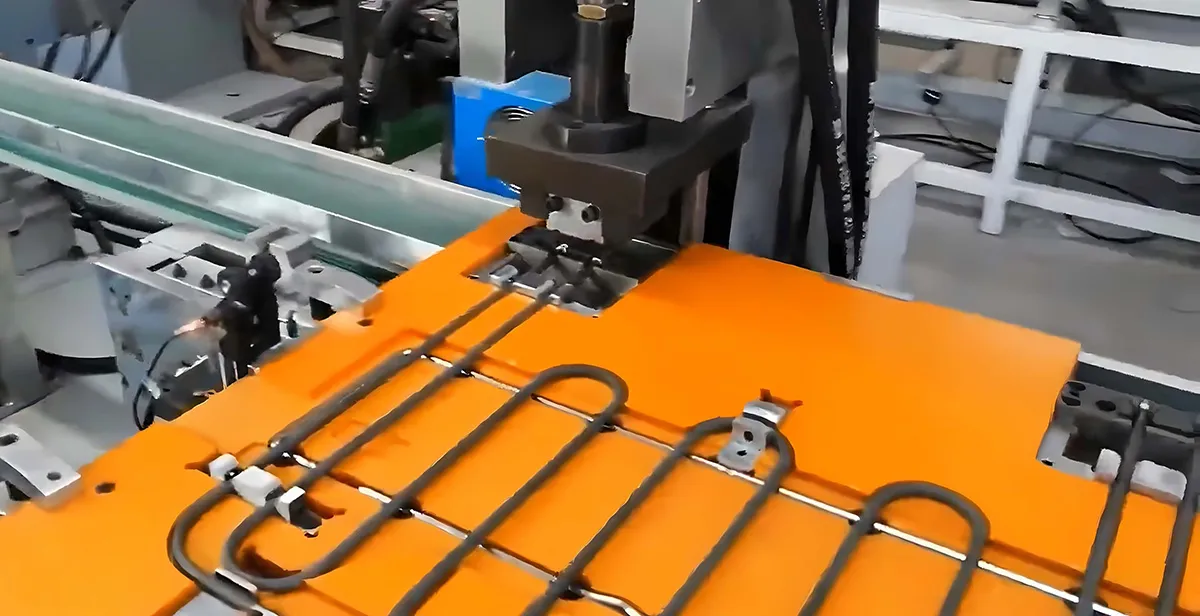

ZH Machinery new automated production line for oven heater is designed for automatic flange riveting, tube end slot pressing, terminal block welding (different direction is optional), marking, electrical performance testing, good and defective products sorting, reclaiming etc.
Notes: All the information above, which may be subject to change, is offered solely for your reference, and should not be taken as a warranty or representation for which we assume any legal responsibility.
1. It is our new designed machine.
2. It can replace manual assembling totally.
1. Powder supply: Tri-phase 380V±10%/50Hz.
2. Spindle speed: 23rpm.
3. Air supply: 5-6KG/cm2.
4. Motor power: 1500W.
5. Applicable tube diameter: 8-12mm.
6. Applicable tube length: 200-1500mm.
7. 20-36positins are available (Over this can be custom-made).
8. Packing size(L*W*H): 1800*1000*3000(mm) (For tube length 1.5meters).
9. Gross weight: 1000Kg.
*Tube diameters and thickness.
*Max.tube length.
*Plastic plug drawing.
*Electrical supply (for example, single phase 220v 50hz).
*To be supplied by customer before delivery: About 500pcs plastic plugs and min.24pcs heating elements without plugs for testing machine.
| Element tube Length (M) | Vibration System (PCS) | Machine Size (L*W*H)mm | Packing Size (L*W*H)mm | Gross Weight (KG) | Net Weight (KG) |
|---|---|---|---|---|---|
| 1 | 1 | 3600*1200*1050 | 3300*1050*1050 | 650 | 500 |
| 1.5 | 1 | 4600*1200*1050 | 4500*1050*1050 | 730 | 580 |
| 2 | 2 | 5600*1200*1050 | 5800*1050*1050 | 810 | 660 |
| 2.5 | 2 | 6600*1200*1050 | 7100*1050*1050 | 890 | 740 |
| 3 | 3 | 7600*1200*1050 | 8200*1050*1050 | 970 | 820 |
| WARRANTY | Machine for one year, electric parts for half a year, wearing parts are not included. |
| PAYMENT | 50% advance payment, 50% before shipment. |
| DELIVERY TIME |
Normally in 60 days after getting advance payment and all the technical parameters we request. But it depends on how many machines you wish to purchase. |
|
PACKING DETAILS |
Merchandise is packed in sea worthy and weather proof firm wooden box. |
