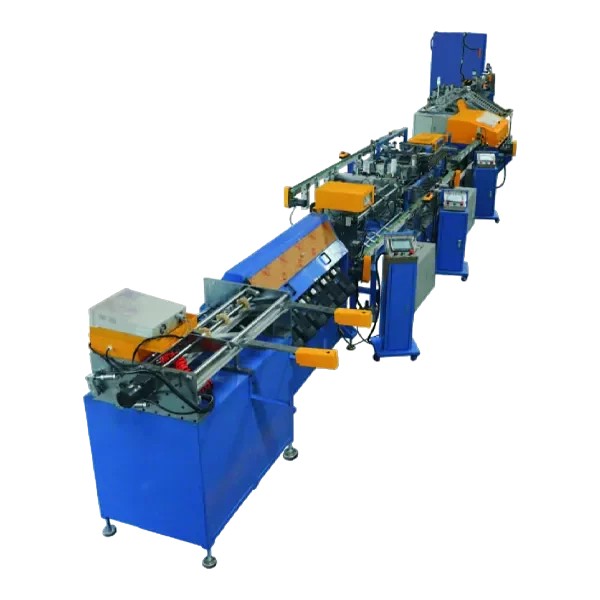

Zhenghe Machinery Washing machine heater production line is our newly developed automatic production line. It automatically connects MgO powder filling–upper plug assembling–feeding with hi-pot test–rolling–resistance value and tube length test–turning, plug removing, pin cutting, MgO powder digging–partial annealing–polishing–M shape bending-clamping and hydraulic pressing for forming, etc. This line only needs 1 person for operation and maintenance, this saves a lot of labor costs.
Notes: All the information above, which may be subject to change, is offered solely for your reference, and should not be taken as a warranty or representation for which we assume any legal responsibility.
*Tube material.
*Heating elements drawings.
*Electrical supply (for example, phase 220v 50hz)
| Element Tube Length | Machine Size (mm) | Machine Size (mm) | Gross Weight (KG) | Net Weight (KG) |
|---|---|---|---|---|
| 2m | 3550*1000*1550 | 3750*1200*1750 | 980 | 850 |
| 3m | 4600*1000*1550 | 4800*1200*1750 | 1050 | 920 |
| 4m | 6000*1000*1550 | 4800*1200*1750 | 1120 | 990 |
| WARRANTY | Machine for one year, electric parts for half a year, wearing parts are not included. |
| PAYMENT | 50% advance payment, 50% before shipment. |
| DELIVERY TIME |
Normally in 60 days after getting advance payment and all the technical parameters we request. But it depends on how many machines you wish to purchase. |
|
PACKING DETAILS |
Merchandise is packed in sea worthy and weather proof firm wooden box. |
