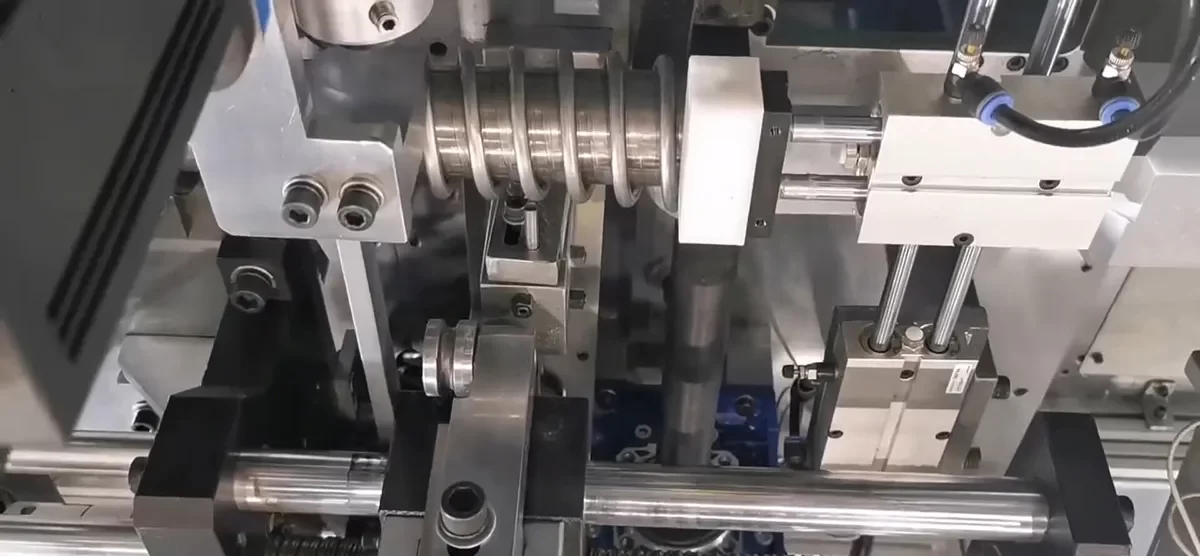

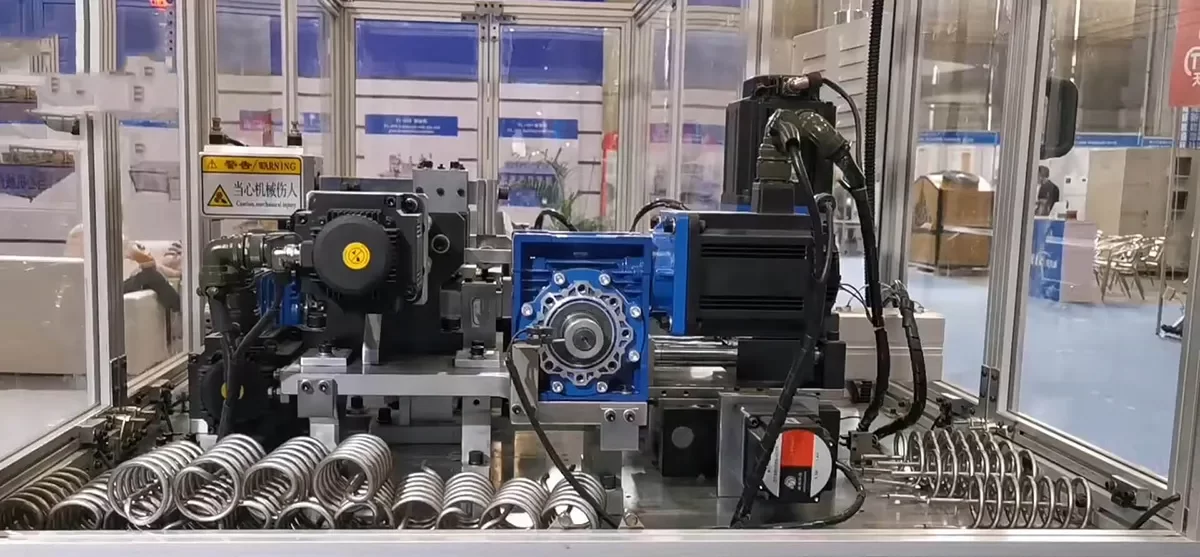

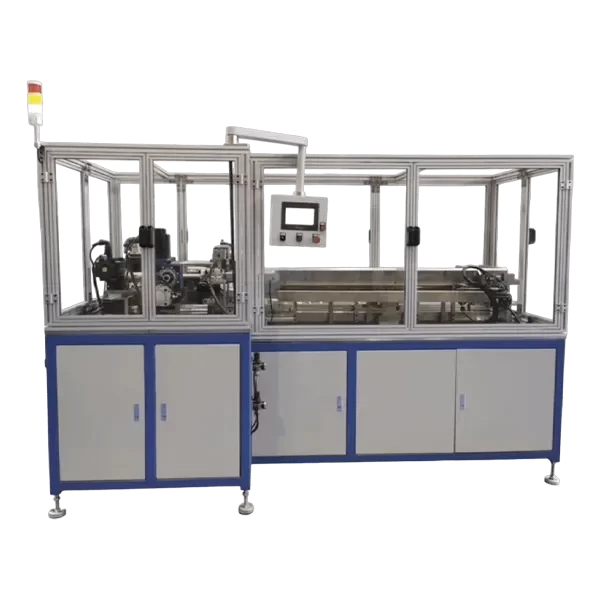

Zhenghe Machinery ZH-500 Fully-automatic spiral shape bending machine( including 2 tube ends bending) is the newly developed machine for automatic tube feeding, automatic bending spiral, automatic marking, and automatic bending angle.
1. Voltage：3 phase 415V 50HZ
2. Air supply : 5-6KG
3. Power：4700KW
4. Dimension：2800*1300*1800MM
*Heater drawings
*Electrical supply(for example,single phase 220v 50hz)
*To be supplied by the customer before delivery: at least 20 pieces of heaters for each heater to make final testing.
| Element Tube Length | Machine Size (mm) | Machine Size (mm) | Gross Weight (KG) | Net Weight (KG) |
|---|---|---|---|---|
| 2m | 3550*1000*1550 | 3750*1200*1750 | 980 | 850 |
| 3m | 4600*1000*1550 | 4800*1200*1750 | 1050 | 920 |
| 4m | 6000*1000*1550 | 4800*1200*1750 | 1120 | 990 |
| WARRANTY | Machine for one year, electric parts for half a year, wearing parts are not included. |
| PAYMENT | 50% advance payment, 50% before shipment. |
| DELIVERY TIME |
Normally in 60 days after getting advance payment and all the technical parameters we request. But it depends on how many machines you wish to purchase. |
|
PACKING DETAILS |
Merchandise is packed in sea worthy and weather proof firm wooden box. |
