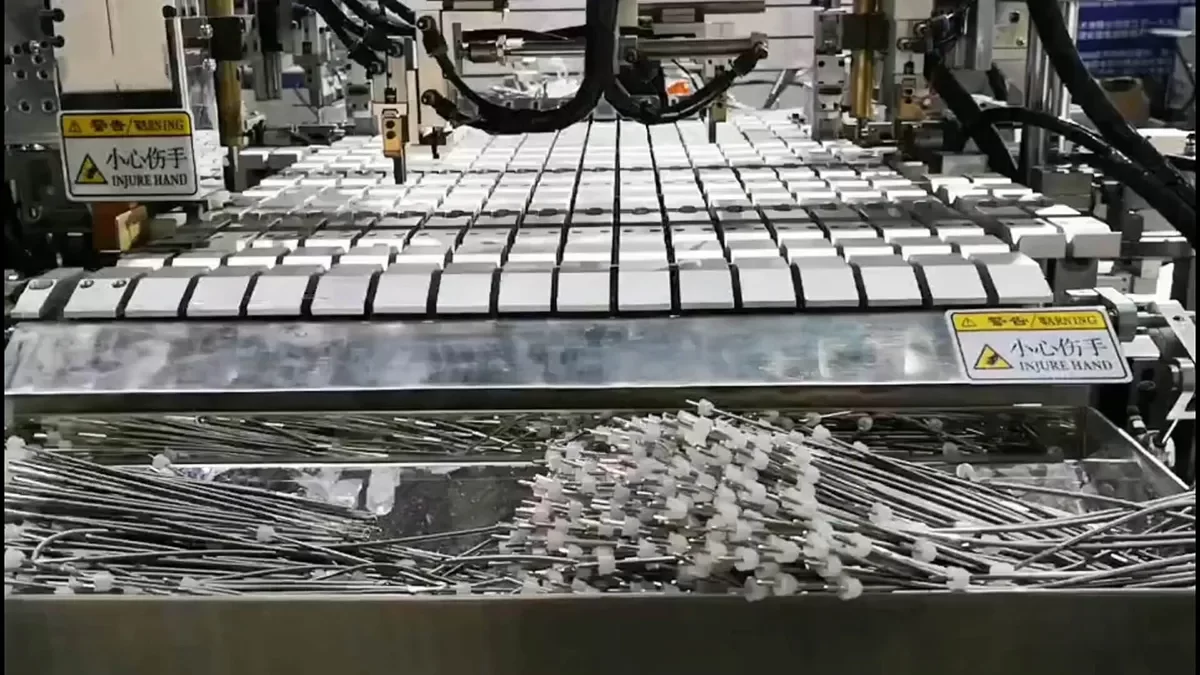

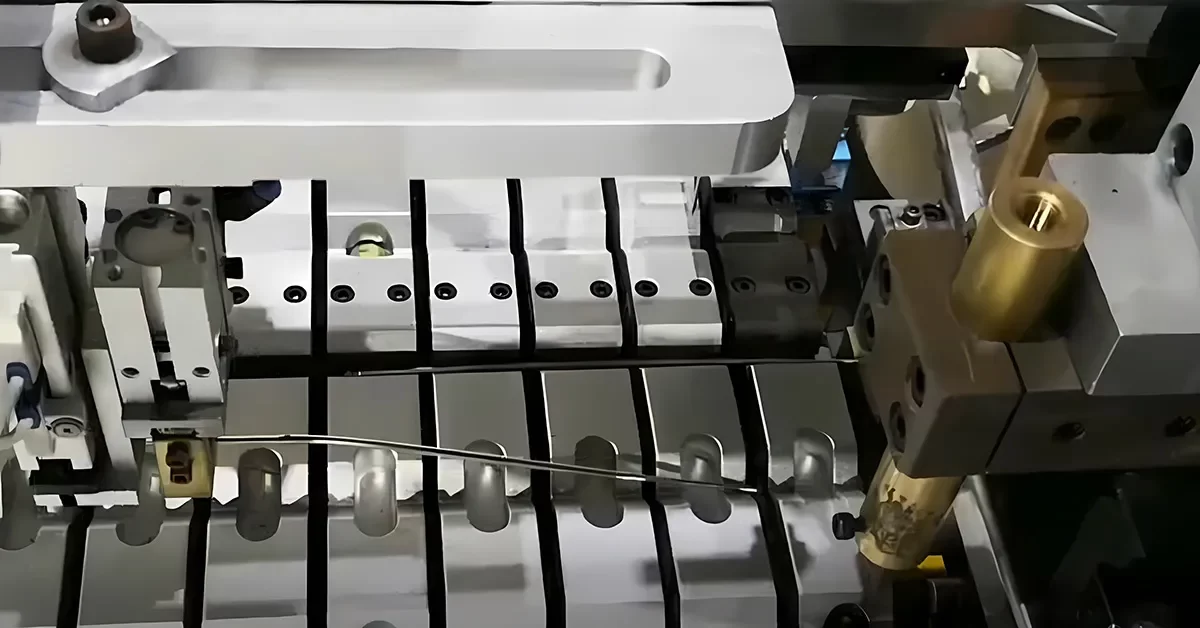

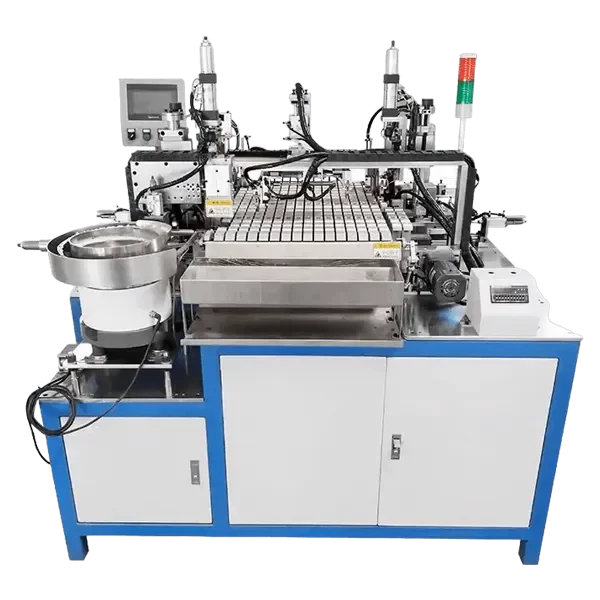

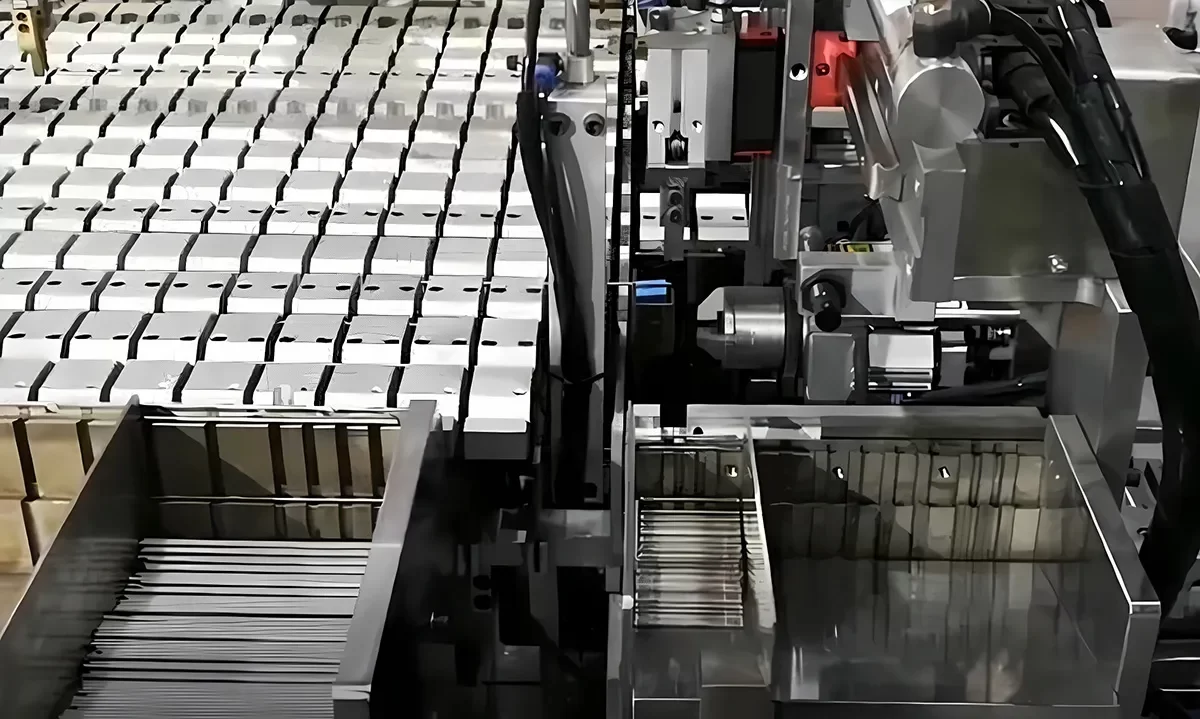

Zhenghe Machinery ZH-450 Multifunction machine is designed to automatic assembling coil,pin with plug,resistance value testing .It also can weld the terminal pin with coil and test resistance value. Electrode tip no need to be grinded within manufacturing of 20000pcs products.
*It can assemble the upper and lower pin with coil, assembling the lower plug, measuring the resistance value, distinguishing qualified and defective products.
*It has a remarkable result for the factories to reduce labor costs, improve their efficiency and enhance their competitiveness in this filed.
*The machine uses a touch-screen interface.
*Coil with pin and plug assembling are all use stepper motors.
*The products models can be conversed by data changing.It is very simple and practical.
*It is the top preferred product of the upgrading machines among the heating elements production factories automation equipment.
*Electrical supply(for example,single phase 220v 50hz)
*Coil outer diameter
*Coil length
*Terminal pin length
*Terminal pin diameter
*Coil samples,top and bottom terminal pin samples ,plug samples each 5000pcs (Note: the coil and plug must be very smooth.)
| Element Tube Length | Machine Size (mm) | Machine Size (mm) | Gross Weight (KG) | Net Weight (KG) |
|---|---|---|---|---|
| 2m | 3550*1000*1550 | 3750*1200*1750 | 980 | 850 |
| 3m | 4600*1000*1550 | 4800*1200*1750 | 1050 | 920 |
| 4m | 6000*1000*1550 | 4800*1200*1750 | 1120 | 990 |
| WARRANTY | Machine for one year, electric parts for half a year, wearing parts are not included. |
| PAYMENT | 50% advance payment, 50% before shipment. |
| DELIVERY TIME |
Normally in 60 days after getting advance payment and all the technical parameters we request. But it depends on how many machines you wish to purchase. |
|
PACKING DETAILS |
Merchandise is packed in sea worthy and weather proof firm wooden box. |
