ZH-422 NC Coiling Machine

designed to wind resistance wire into coil and can be used for different wire diameter.

  • It can make 2 pcs coils each time
  • speed is much faster compared to the ZH-110A Coiling machine
  • NC system control
  • stable performance.
  • coil length and resistance value can be adjusted
Get Quote Now !
Download Spec Sheet
Facebook Linkedin Youtube

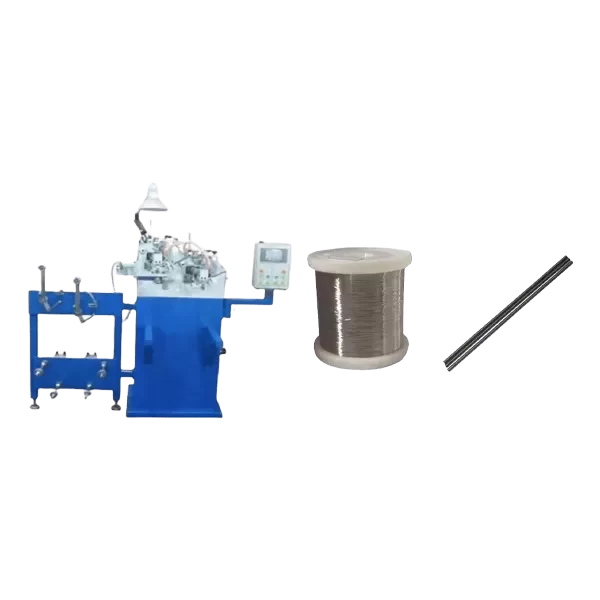

ZH-422-NC-Coiling-Machine-zt-imageonline.co-1671199

DESCCRIPTION

SPECIFICATION

RELATED PRODUCTS

TECH SUPPORT

Detailed Product Description

Zhenghe Machinery ZH-422 NC Coiling machine is designed to wind resistance wire into coil and can be used for different wire diameter. It can make 2 pcs coils each time and speed is much faster compared to the ZH-110A Coiling machine and the ZH-110 Coiling machine.

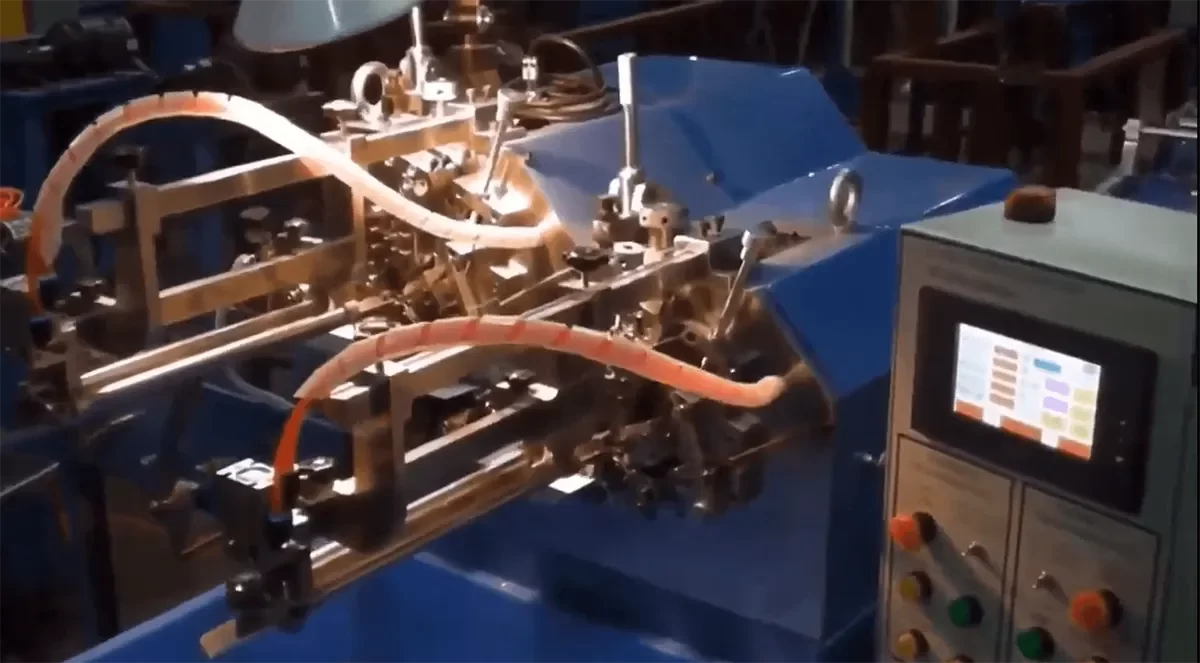

imgi108790956-imageonline.co-4982911

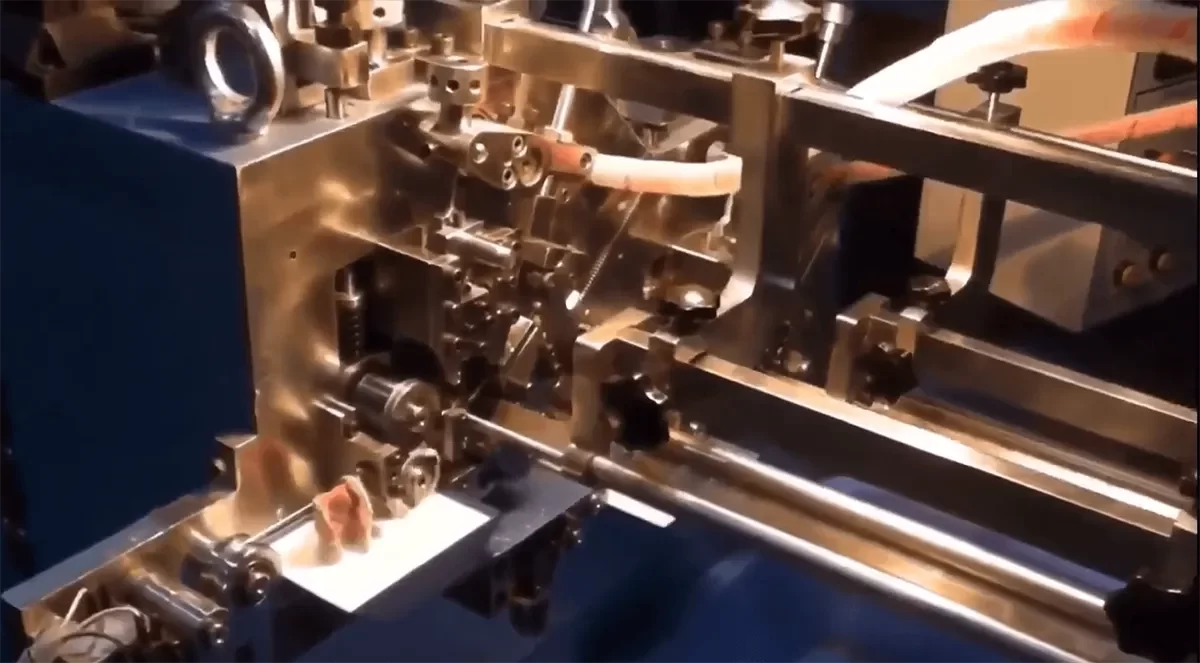

imgi118790955-imageonline.co-2535020

SPECIFICATON

Functions:

  1. NC system control, stable performance.
  2. Can program parameters as per requirements.
  3. Feeding droved by step motor, coil length and resistance value can be adjusted.
  4. Continuous working and automatic cut with clean ends.
  5. Small size, high accuracy, easy operation and high efficiency.

Main technical parameters:

  1. Power supply: single phase 220v 50Hz.
  2. Power: 1.45KW.
  3. Feeding motor speed: 80M/Min.
  4. Shaft motor speed: 133/Min.
  5. Coiling direction: Right.
  6. Min. Coil ID: ≥3.
  7. Wire diameter: 0.1-0.55mm.
  8. Size: 680*500*1400mm
  9. Weight: 360kgs

Required information when ordering our ZH-422 NC Coiling machine for resistance wire

*Resistance wire diameters and coil inner diameter accordingly.

*Single wire or tandem wires.

*Electrical supply (for example,single phase 220v 50hz).

Notes: All the information above, which may be subject to change, is offered solely for your reference, and should not be taken as a warranty or representation for which we assume any legal responsibility.

parameter

Element Tube Length Machine Size (mm) Machine Size (mm) Gross Weight (KG) Net Weight (KG)
2m 3550*1000*1550 3750*1200*1750 980 850
3m 4600*1000*1550 4800*1200*1750 1050 920
4m 6000*1000*1550 4800*1200*1750 1120 990
WARRANTY Machine for one year, electric parts for half a year, wearing parts are not included.
PAYMENT 50% advance payment, 50% before shipment.
DELIVERY TIME Normally in 60 days after getting advance payment and all the technical parameters we request.
But it depends on how many machines you wish to purchase.
PACKING
DETAILS 		Merchandise is packed in sea worthy and weather proof firm wooden box.
