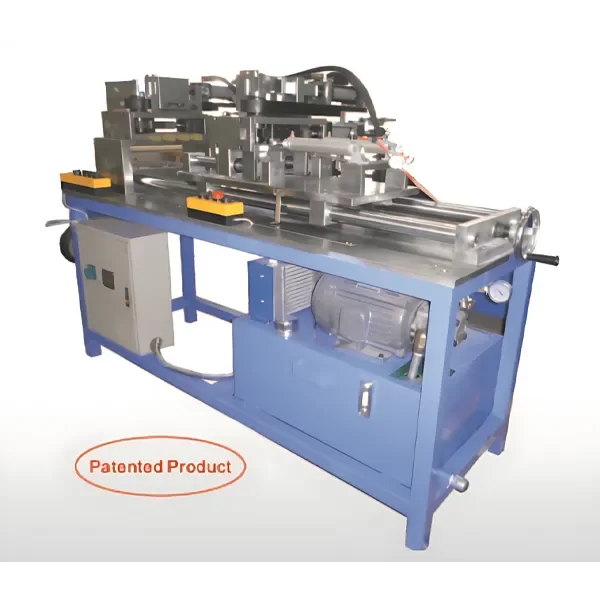

Zhenghe Intelligent ZH-385A Double 90 degree bending machine is designed to bend the two ends of heating elements to 90 degrees at the same time.
1. PLC control, human-computer interface operation.
2. Hydraulic drive, stable performance.
3. Efficiency: 6500~7000pcs/8h
4. Single turn mold, double turns mold is easy to remove and replace. After choosing the program, you can casually bend any shape for both types.
1.PLC control, easy operation and maintenance.
2.Hydraulic drive, stable performance.
3.High production, can bend 1-4pcs at one time.
1.Power supply: AC380V+/-10%,50Hz.
2.Power: 4KW.
3.Applicable tube diameters: ≤ 10mm (center distance of two R≤ 1000mm, tube ends length≥ 25mm, over this range can be custom-made).
4.Hydraulic pressure: 60-65kg/cm2.
5.Packing size(L*W*H): 2200*1350*1200mm.
6.Gross weight: 600kg.
*Tube material.
*Tube diameters and thickness.
*Tube length.
*Electrical supply (for example, single phase 220v 50hz).
| Model | Power supply | Motor power (W) | Applicable tube diameter (mm) | Applicable tube length (mm) | Applicable tube length (mm) | Machine size (mm) | Gross weight (KG) | Net weight (KG) |
|---|---|---|---|---|---|---|---|---|
| 3 stations | Tri-phase 380V 60HZ |
1500 | 5-21 | Above 250 | 1500*850*1500 | 1300*700*1200 | 450 | 350 |
| 6 stations | Tri-phase 380V 60HZ |
2200 | 6.6-18 | Above 250 | 2000*1000*1500 | 1800*850*1200 | 950 | 850 |
| WARRANTY | Machine for one year, electric parts for half a year, wearing parts are not included. |
| PAYMENT | 50% advance payment, 50% before shipment. |
| DELIVERY TIME |
Normally in 60 days after getting advance payment and all the technical parameters we request. But it depends on how many machines you wish to purchase. |
|
PACKING DETAILS |
Merchandise is packed in sea worthy and weather proof firm wooden box. |
