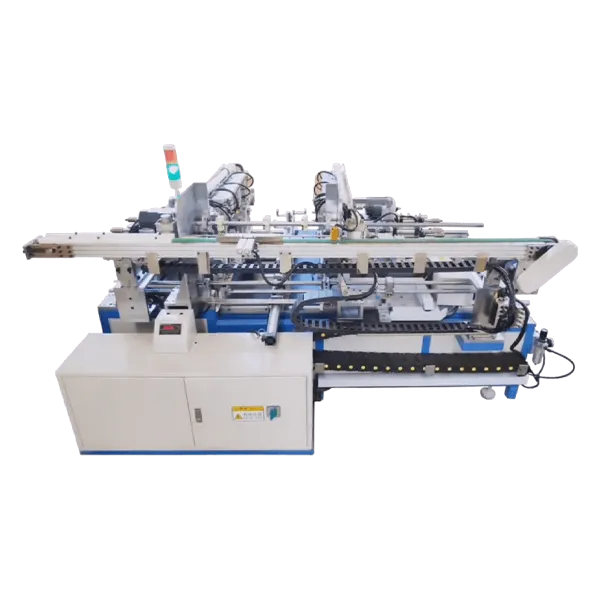

Zhenghe Machinery ZH-378 Multi-function machine is designed for automatic production and processing of tube length plug pull,pin cutting,pin crop and MgO powder gouge after rolling automatically.

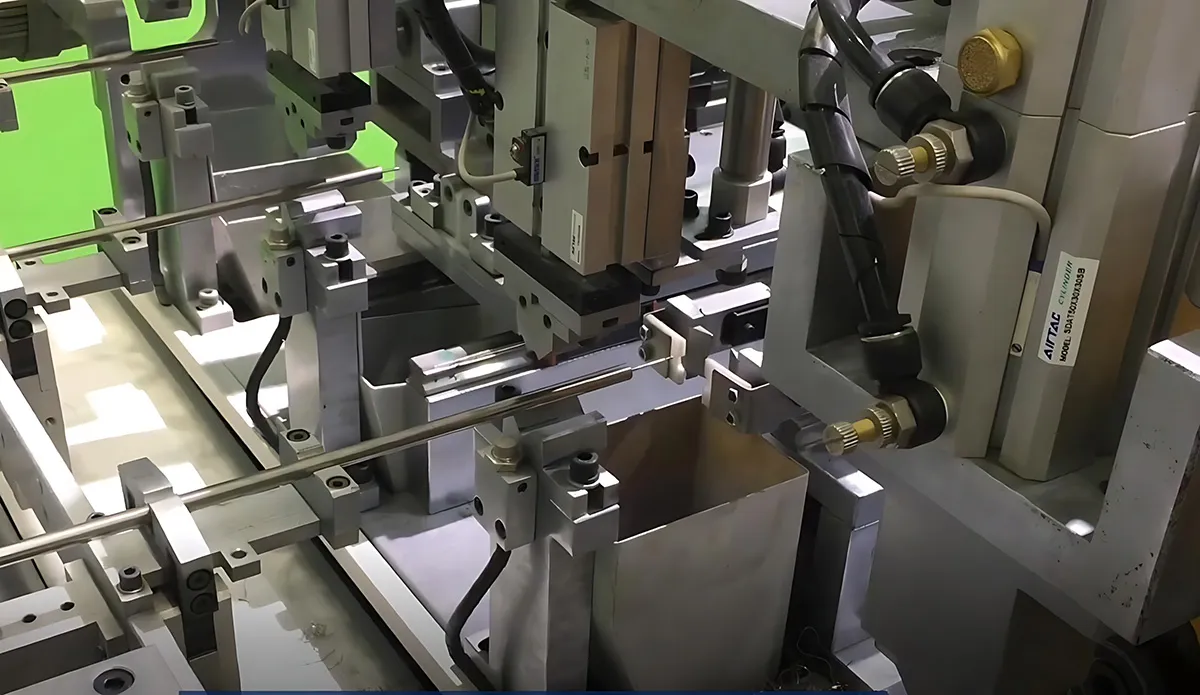

1. It is automatic skinning, plug removing, pin cutting, MgO powder digging.
2. Besides, new functions like pin chamfering, straight pipe marking, and so on can also be added.
3. It also can be custom-made according to different clients’ requirements.
1. Power supply: triphase 380V±10%/50Hz.
2. Power: 4.5KW.
3. Air supply:5-7kgf/cm2.
4. Applicable tube length: 300～1200mm.
5. Applicable tube diameter: Φ6.6-Φ8 (over this range can be custom-made).
6. Applicable termina
*Tube diameters (after reduction) and tube thickness.
*Minimum and maximum element tube length.
*Tube material.
*Specific terminal pin diameters and pin outside tube end length after turning.
*Specific pin outside tube end length after rolling.
*MgO powder digging length.
*Electrical supply (for example,single phase 220v 50hz).
*To be supplied by customer before delivery: About 50 pieces heater for final adjustments.
| Mandrel Size (mm) | Wire Diameter (mm) | Single Wire or Double Wires |
|---|---|---|
| 1 | 0.25 | Single Wire |
| 1.2 | 0.12-0.5 | Both |
| 1.65 | Below 0.45 | Both |
| 1.85 | Below 0.6 | Both |
| 1.9 | Below 0.75 | Both |
| 2.2 | Below 0.75 | Both |
| WARRANTY | Machine for one year, electric parts for half a year, wearing parts are not included. |
| PAYMENT | 50% advance payment, 50% before shipment. |
| DELIVERY TIME |
Normally in 60 days after getting advance payment and all the technical parameters we request. But it depends on how many machines you wish to purchase. |
|
PACKING DETAILS |
Merchandise is packed in sea worthy and weather proof firm wooden box. |
