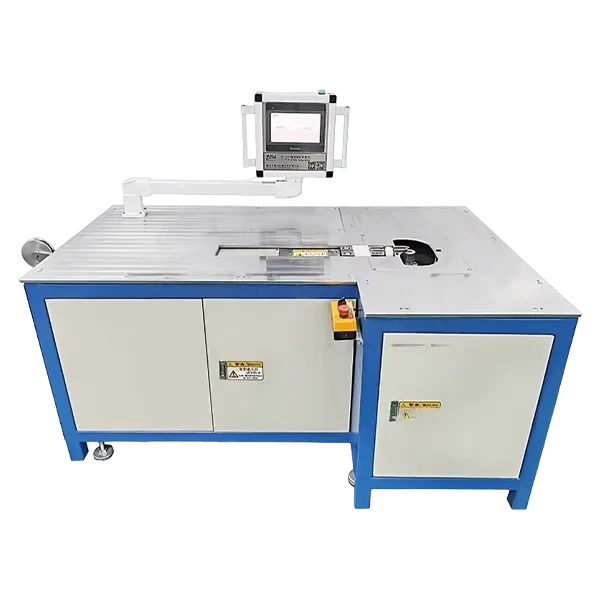

ZH-377 Bending Machine For Heating Element

This machine has 3 bending heads

  • Use CNC control system, stable performance.
  • Can program by yourselves.
  • CNC system or simple touch screen for your choice.
  • Pneumatic clamp, can bend 1-4pcs at one time.
  • It has 2G card, can save many programs.
Get Quote Now !
Download Spec Sheet
Facebook Linkedin Youtube
ZH-377-Bending-Machine-For-Heating-Element-zt-imageonline.co-7318640

DESCCRIPTION

SPECIFICATION

RELATED PRODUCTS

TECH SUPPORT

Detailed Product Description

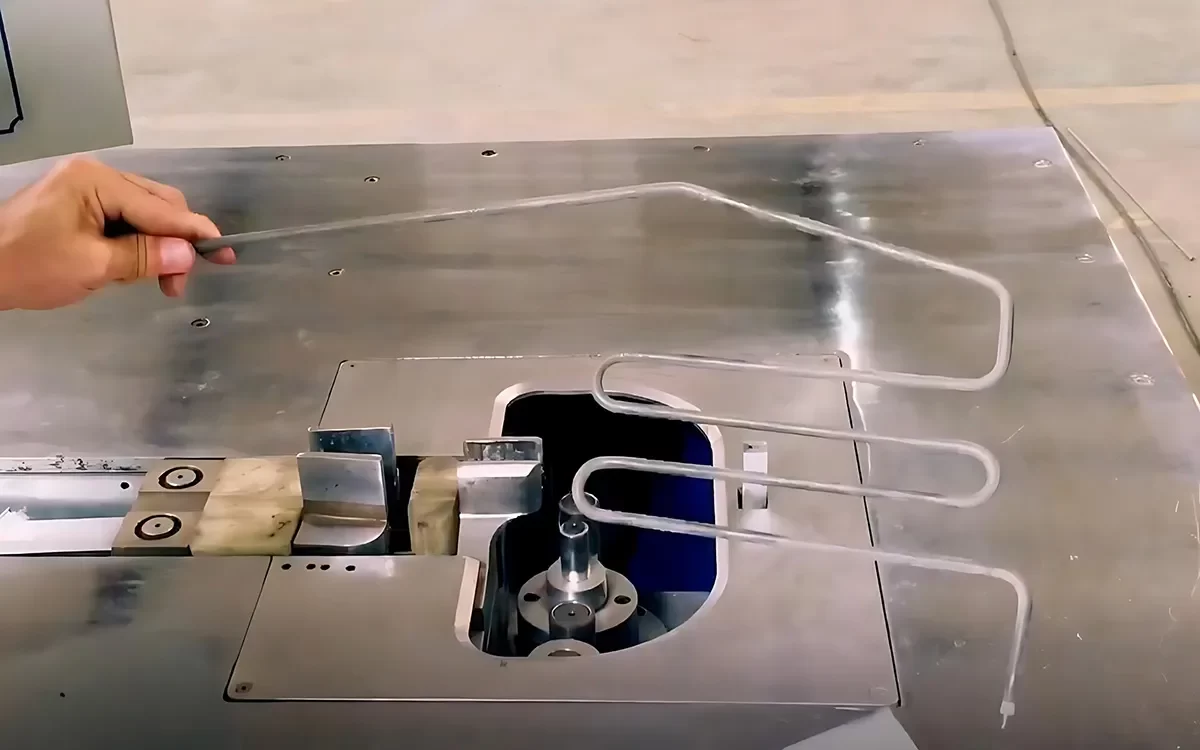

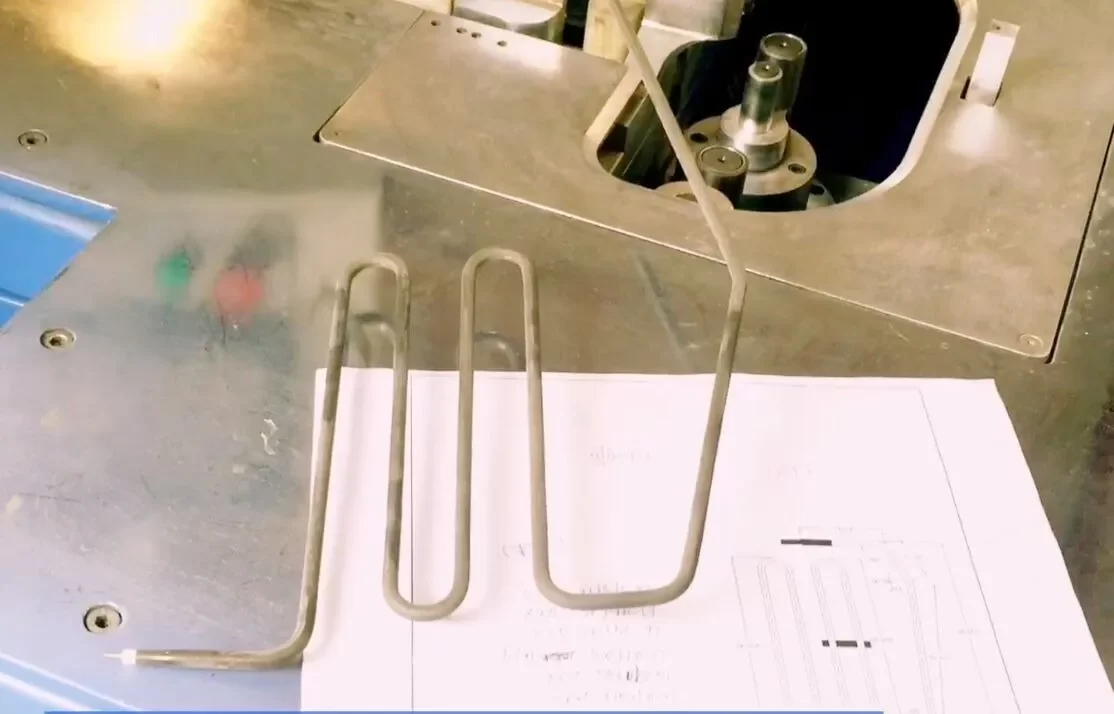

Zhenghe Machinery ZH-377 Bending machine is designed to bend heating element to different shapes.This machine has 3 bending heads.If you prefer 1 bending head, please choose our ZH-185 Bending machine.



*3 bending heads.

*Can program by yourselves.

*CNC system or simple touch screen for your choice.


imgi119539177-imageonline.co-4661269
imgi109225792-imageonline.co-4505422

SPECIFICATON

Functions:

  1. Use CNC control system, stable performance.
  2. Can program as per customers requirement.
  3. Servo motor controls bending. Feeding, length and angle can be adjusted.
  4. It can bend 3 different R (three bending head).
  5. Pneumatic clamp, can bend 1-4pcs at one time.
  6. It has 2G card, can save many programs.

Main technical parameters:

  1. Power supply: 3phase380V 50Hz.
  2. Power: 4KW.
  3. Air supply: 5-7KG/cm2.
  4. Tube diameter: 6-10mm.
  5. Min. bending R 9mm, Max. bending R50mm.
  6. Packing size (L*W*H): 1910*1020*1690mm.
  7. Gross weight: 1130kg.

Required information when ordering our ZH-377 Bending machine for tubular heater

*Tube material.

*Heating elements drawings.

*Electrical supply (for example,single phase 220v 50hz).

Notes: All the information above, which may be subject to change, is offered solely for your reference, and should not be taken as a warranty or representation for which we assume any legal responsibility.

parameter

Element Tube Length Machine Size (mm) Machine Size (mm) Gross Weight (KG) Net Weight (KG)
2m 3550*1000*1550 3750*1200*1750 980 850
3m 4600*1000*1550 4800*1200*1750 1050 920
4m 6000*1000*1550 4800*1200*1750 1120 990
WARRANTY Machine for one year, electric parts for half a year, wearing parts are not included.
PAYMENT 50% advance payment, 50% before shipment.
DELIVERY TIME Normally in 60 days after getting advance payment and all the technical parameters we request.
But it depends on how many machines you wish to purchase.
PACKING
DETAILS 		Merchandise is packed in sea worthy and weather proof firm wooden box.
