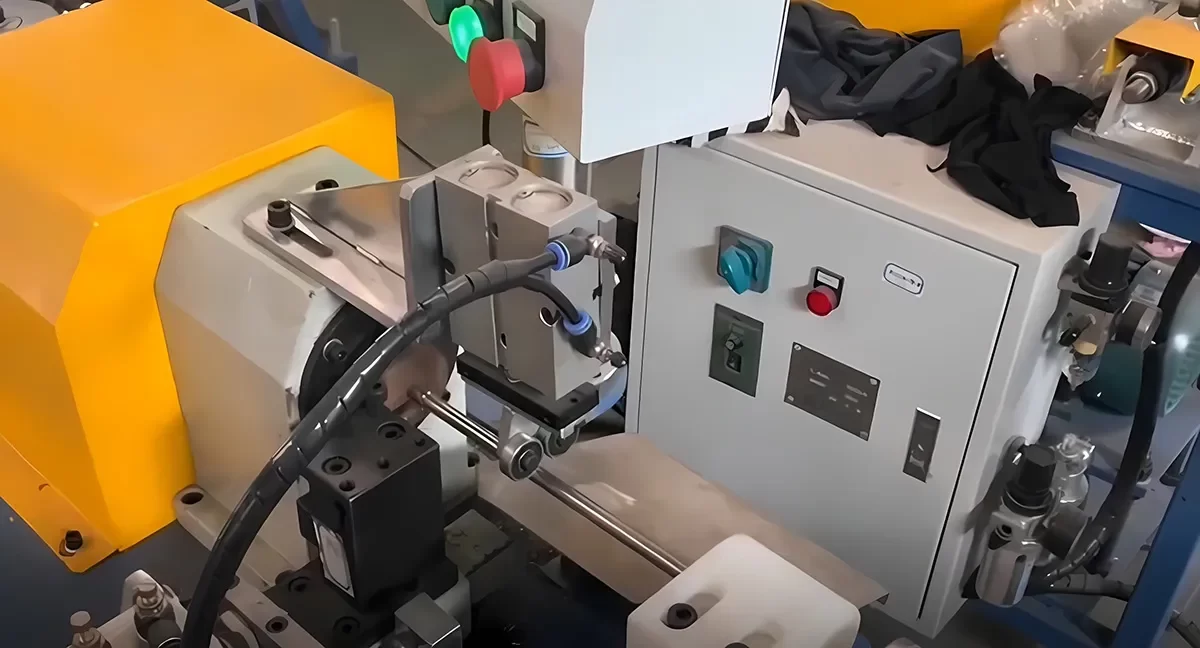

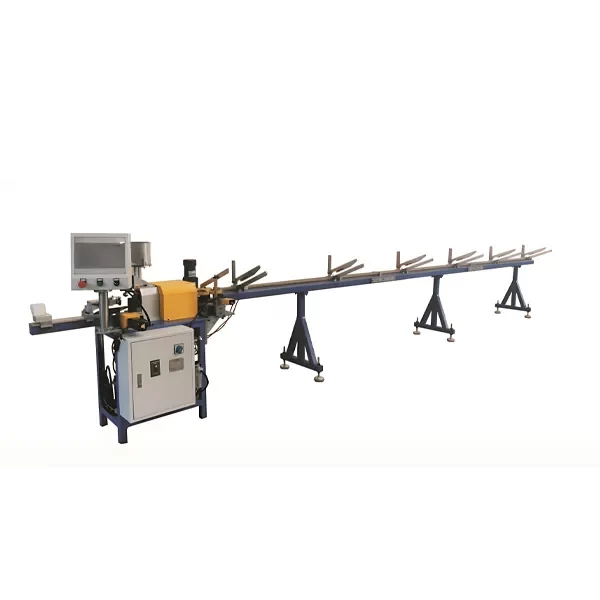

Zhenghe Intelligent ZH-363 Automatic pipe cutting machine is designed to cut copper, steel, aluminum and stainless steel (precut) tubes into the desired final lengths. It is designed to operate separately. After cutting, element tubes are ready for filling without any further operation, like cleaning. It is PLC control, with display operation (touch screen operation), feeding, locating and cutting is done automatically, which could save labor cost compared to the ZH-120 Manual tube cutting machine.
*Patent product.
*Tube length before cutting can be any, but below 6 meters.
*Cut by cutting tool.
*Can cut short and long tubes at the same time.
*Tube rotate, cutting tool not rotate.
*Change collet for different tube diameter.
*Fast operation.
*High quality of tubes.
*Not cut fully, cut most, then a mechanism pushes it to make it drop from original tube. This will ensure that there are absolutely no burs after cutting.
*Human-computer interface operation, one person can operate 3-4 machines.
1. Tube length before cutting: max. 6 meters.
2. Tube length after cutting: 150mm-2300mm.
3. Clean cut without burs.
1. Power supply: 3 phase 380V, 50Hz (can be custom-made).
2. Rated power: 1.6KW.
3. Air supply: 5-7kg/cm2.
4. Tube diameter: 6-25mm.
5. Cutting tool: cutter.
6. Efficiency: 20000pcs-50000pcs (8.0mm copper tube).
7. Packing size (L*W*H): 6300*1100*1400(mm).
8. Weight: 650kg.
*Tube diameter and tube thickness.
*Tube material. *Max. tube length before and after cutting.
*Electrical supply (for example, single phase 220v 50hz).
*To be supplied by customer before delivery: about 20 pieces tubes for final adjustments Spare parts you may need to buy
*Blade
*Spring collet
| Element Tube Length | Machine Size (mm) | Machine Size (mm) | Gross Weight (KG) | Net Weight (KG) |
|---|---|---|---|---|
| 2m | 3550*1000*1550 | 3750*1200*1750 | 980 | 850 |
| 3m | 4600*1000*1550 | 4800*1200*1750 | 1050 | 920 |
| 4m | 6000*1000*1550 | 4800*1200*1750 | 1120 | 990 |
| WARRANTY | Machine for one year, electric parts for half a year, wearing parts are not included. |
| PAYMENT | 50% advance payment, 50% before shipment. |
| DELIVERY TIME |
Normally in 60 days after getting advance payment and all the technical parameters we request. But it depends on how many machines you wish to purchase. |
|
PACKING DETAILS |
Merchandise is packed in sea worthy and weather proof firm wooden box. |
