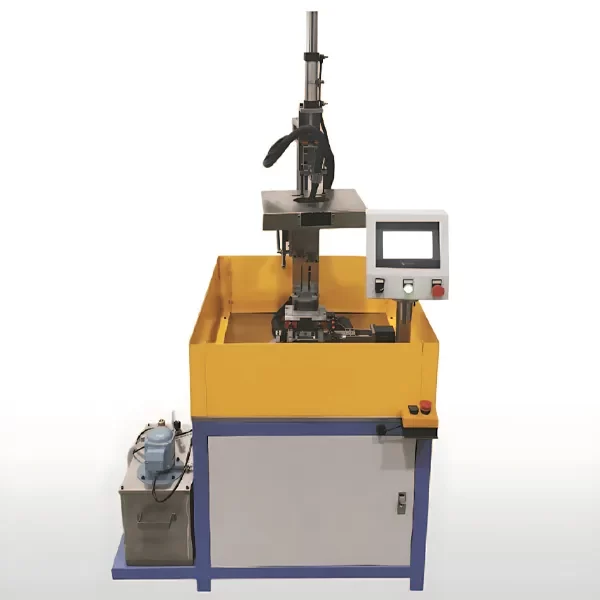

Used for automatically welding of stainless steel flange and stainless steel thermostat tubes. X-axis and y-axis automatically find coordinate points, the coordinate value can be set. Servo motor control rotating shaft speed and angle, so that the thermostat tube and flange welding effect more uniform and smoother.
1. X axis and Y axis are controlled by stepping motor, and the position is accurate. Speed is adjustable.
1. Voltage: 380V±10%, 50Hz.
2. Power: 17Kw.
3. Air supply: 0.5-0.7 MPA / cm2.
4. Welding speed: 6S / 1 tube.
5. Size (L* W* H) : 900×1107×1766(mm).
6. Weight: 300kg.
*Finish product drawing
*Sample tubes and flange samples 100sets for testing machine
*Electrical supply (for example, single phase 220v 50hz)
| Mandrel Size (mm) | Wire Diameter (mm) | Single Wire or Double Wires |
|---|---|---|
| 1 | 0.25 | Single Wire |
| 1.2 | 0.12–0.5 | Both |
| 1.65 | Below 0.45 | Both |
| 1.85 | Below 0.6 | Both |
| 1.9 | Below 0.75 | Both |
| 2.2 | Below 0.75 | Both |
| WARRANTY | Machine for one year, electric parts for half a year, wearing parts are not included. |
| PAYMENT | 50% advance payment, 50% before shipment. |
| DELIVERY TIME |
Normally in 60 days after getting advance payment and all the technical parameters we request. But it depends on how many machines you wish to purchase. |
|
PACKING DETAILS |
Merchandise is packed in sea worthy and weather proof firm wooden box. |
