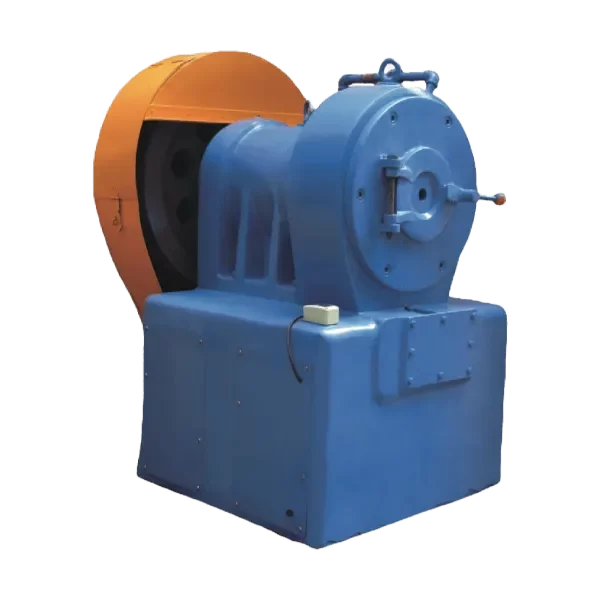

ZH-347 Swaging Machine for Cartridge Heater

The machine can make the tube with good smooth finish.

  • easy operation and maintenance
  • Small size
  • compact in structure
  • easy operation and good design
  • designed according to the production and market demand
Get Quote Now !
Download Spec Sheet
Facebook Linkedin Youtube
ZH-347-Swaging-Machine-for-Cartridge-Heater--zt-imageonline.co-1491223

DESCCRIPTION

SPECIFICATION

RELATED PRODUCTS

TECH SUPPORT

Detailed Product Description

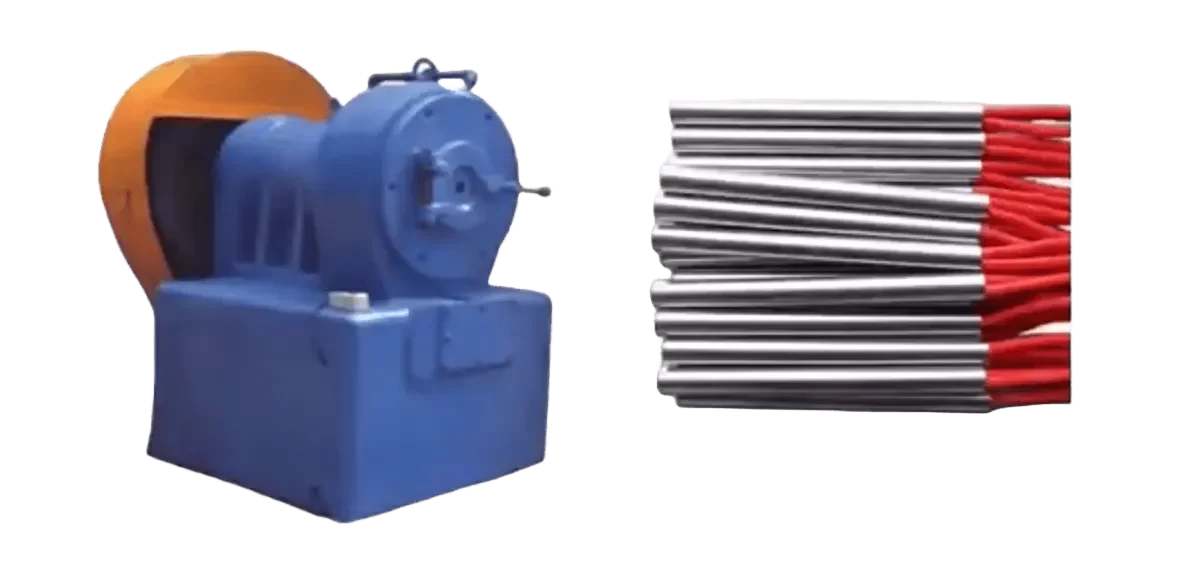

Zhenghe Machinery ZH-347 Swaging machine for cartridge heater is designed according to the production and market demand. It is used to shrink the cartridge heater diameter. While the ZH-101 Rolling machine is designed for compressing tubular heater diameter,it has the character of easy operation and maintenance.


imgi108805117-imageonline.co-6440382
imgi118805116-imageonline.co-3367963

SPECIFICATON

Functions:

  1. The machine can make the tube with good smooth finish.
  2. Operation mode: easy operation and maintenance.
  3. Small size, compact in structure, easy operation and good design.

Main technical parameters:

  1. Power supply: tri-phase 380V, 50Hz.
  2. Power: 5.5KW.
  3. Main shaft rotation speed: 272/rpm.
  4. Motor rotation speed: 1450/rpm.
  5. Feeding speed: 5-6m/min.
  6. Applicable tube length(mm): ≥50mm.
  7. Applicable tube diameter(mm): ≤20mm.
  8. Size: 920*750*1170mm.
  9. Weight: 980mm.

Required information when ordering our ZH-347 Rotary Swaging Machine for Cartridge Heater

*Tube diameters before and after swaging.

*Electrical supply (for example, single phase 220v 50hz).

*To be supplied by customer before delivery: About 15pcs cartridge heater for final adjustments.

Notes: All the information above, which may be subject to change, is offered solely for your reference, and should not be taken as a warranty or representation for which we assume any legal responsibility.

parameter

Element Tube Length Machine Size (mm) Machine Size (mm) Gross Weight (KG) Net Weight (KG)
2m 3550*1000*1550 3750*1200*1750 980 850
3m 4600*1000*1550 4800*1200*1750 1050 920
4m 6000*1000*1550 4800*1200*1750 1120 990
WARRANTY Machine for one year, electric parts for half a year, wearing parts are not included.
PAYMENT 50% advance payment, 50% before shipment.
DELIVERY TIME Normally in 60 days after getting advance payment and all the technical parameters we request.
But it depends on how many machines you wish to purchase.
PACKING
DETAILS 		Merchandise is packed in sea worthy and weather proof firm wooden box.
