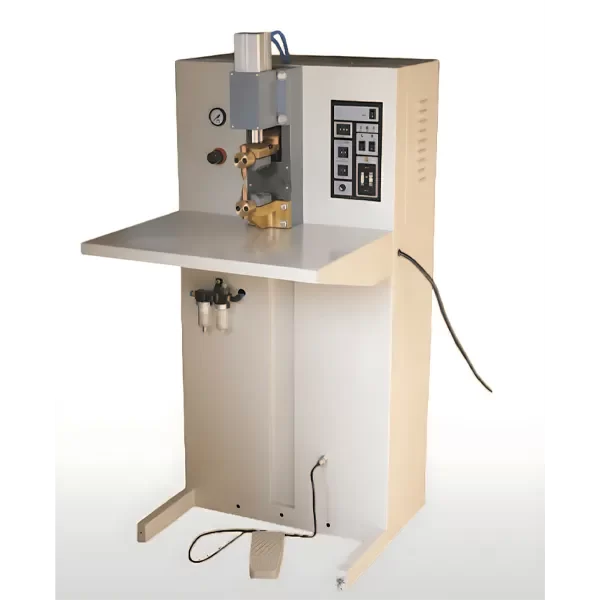

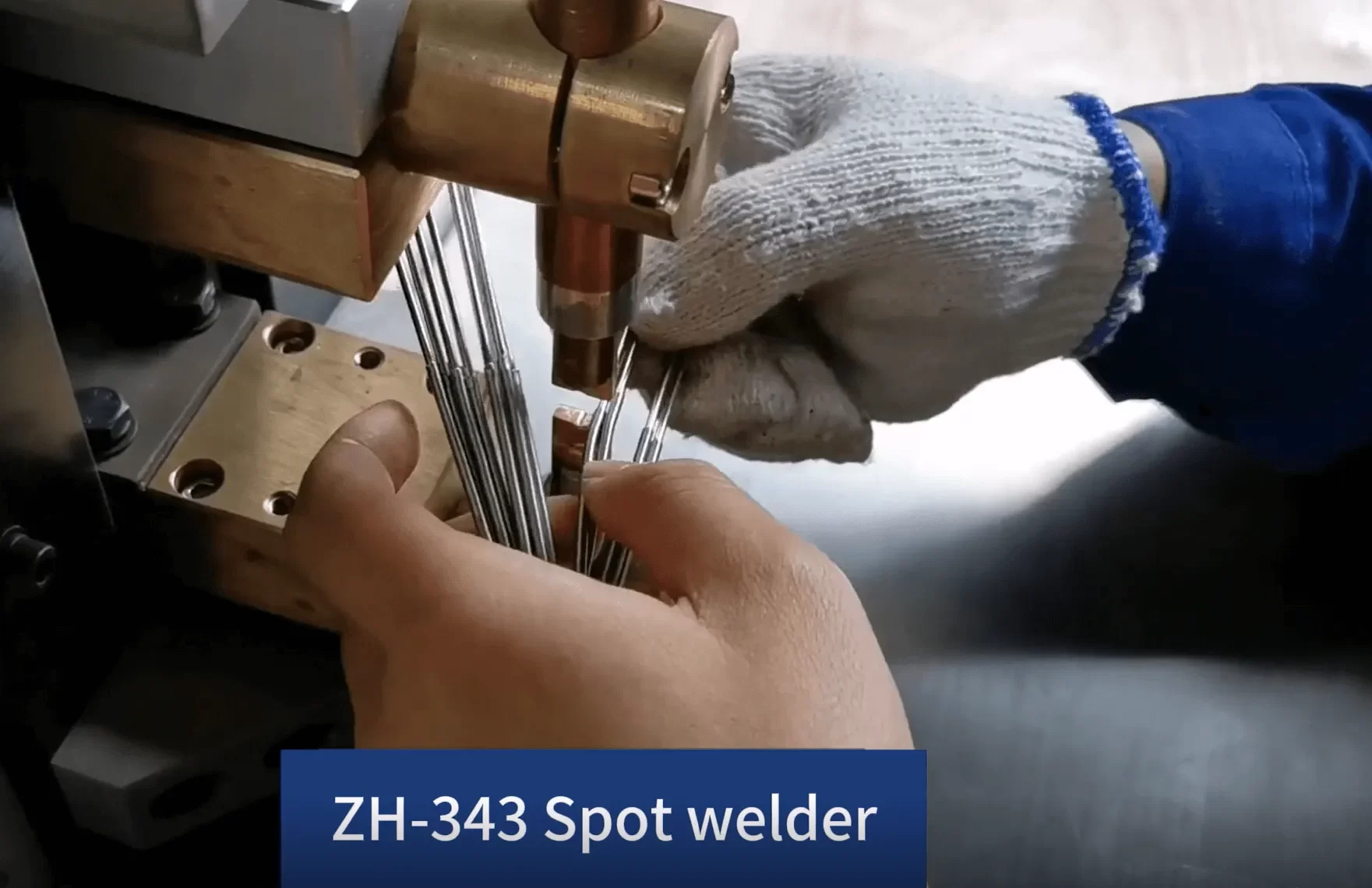

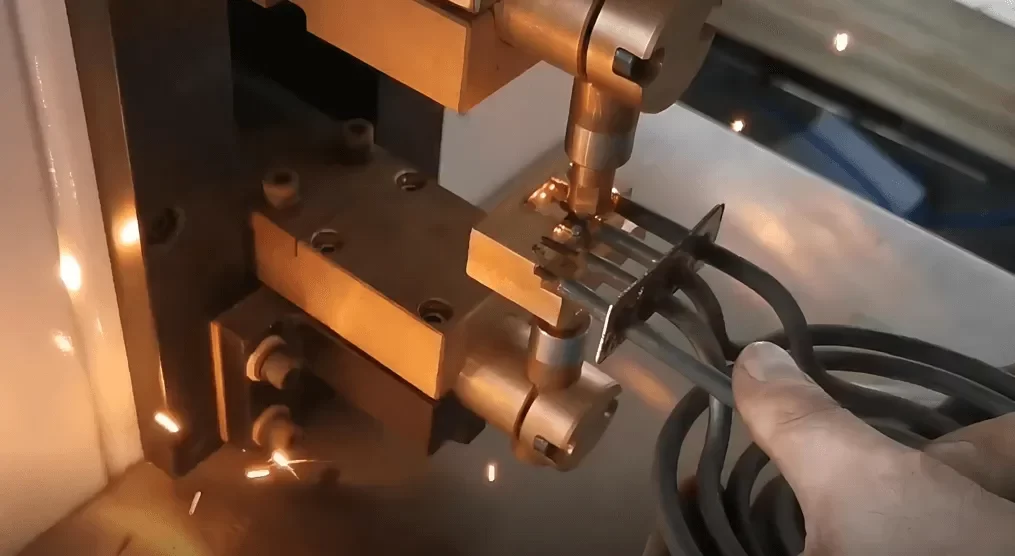

Zhenghe Intelligent ZH-343 Spot welder is designed to welding coils with terminal pin(cold pin) or welding terminal pin with terminal clip.
1. NC system control, stable performance.
2. Can program parameters as per requirements.
3. Feeding droved by step motor, coil length can be adjusted.
4. Continuous working and automatic cut with clean ends.
5. Small size, high accuracy, easy operation and high efficiency.
1. Power supply: single phase 220V 50Hz.
2. Power:0.95KW.
3. Feeding motor speed: 80M/Min.
4. Shaft motor speed: 133/Min.
5. Coiling direction: Right.
6. Min. Coil ID: ≥3.
7. Wire diameter: 0.1-0.55mm.
8. Size: 320*500*1400mm. Weight: 250kgs.
*Resistance wire diameters and coil inner diameter accordingly.
*Single wire or tandem wires.
*Electrical supply (for example, single phase 220v 50hz).
| Mandrel Size (mm) | Wire Diameter (mm) | Single Wire or Double Wires |
|---|---|---|
| 1 | 0.25 | Single Wire |
| 1.2 | 0.12–0.5 | Both |
| 1.65 | Below 0.45 | Both |
| 1.85 | Below 0.6 | Both |
| 1.9 | Below 0.75 | Both |
| 2.2 | Below 0.75 | Both |
| WARRANTY | Machine for one year, electric parts for half a year, wearing parts are not included. |
| PAYMENT | 50% advance payment, 50% before shipment. |
| DELIVERY TIME |
Normally in 60 days after getting advance payment and all the technical parameters we request. But it depends on how many machines you wish to purchase. |
|
PACKING DETAILS |
Merchandise is packed in sea worthy and weather proof firm wooden box. |
