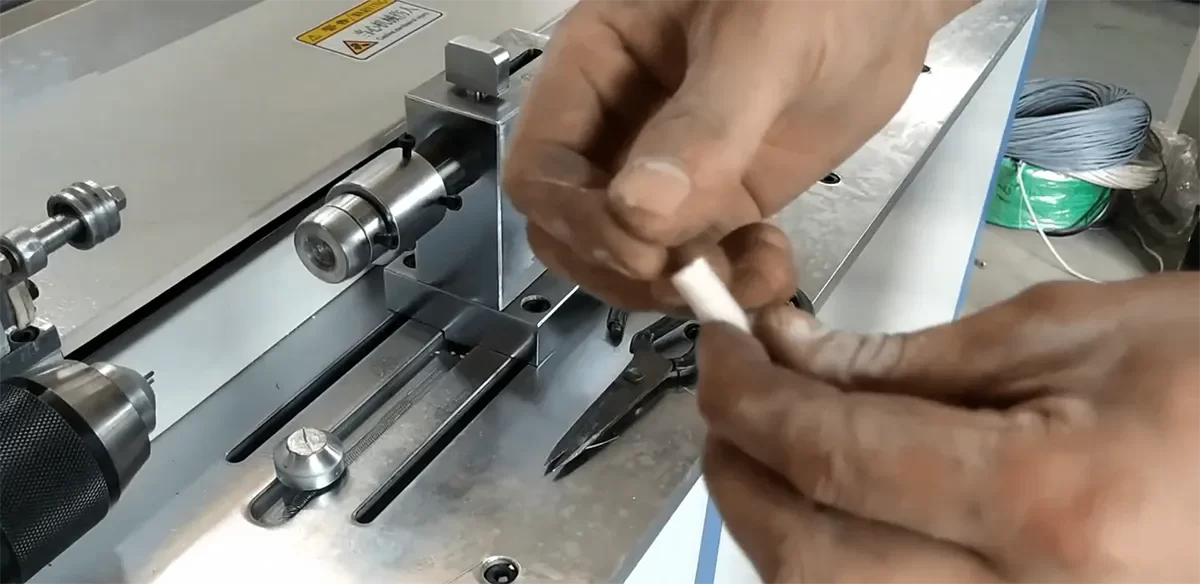

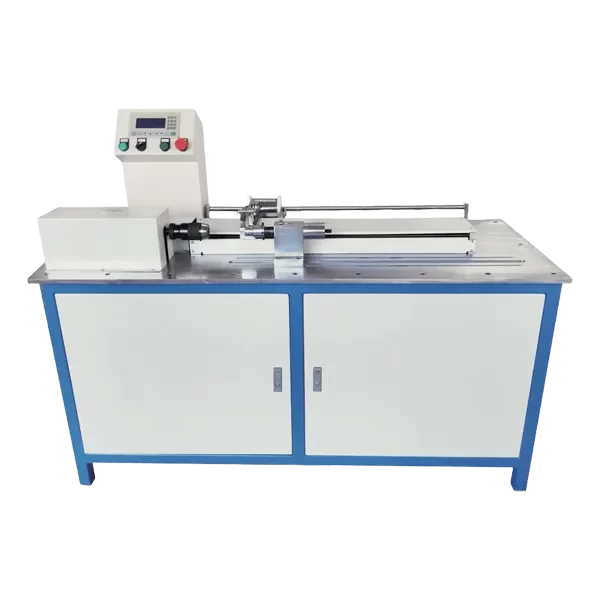

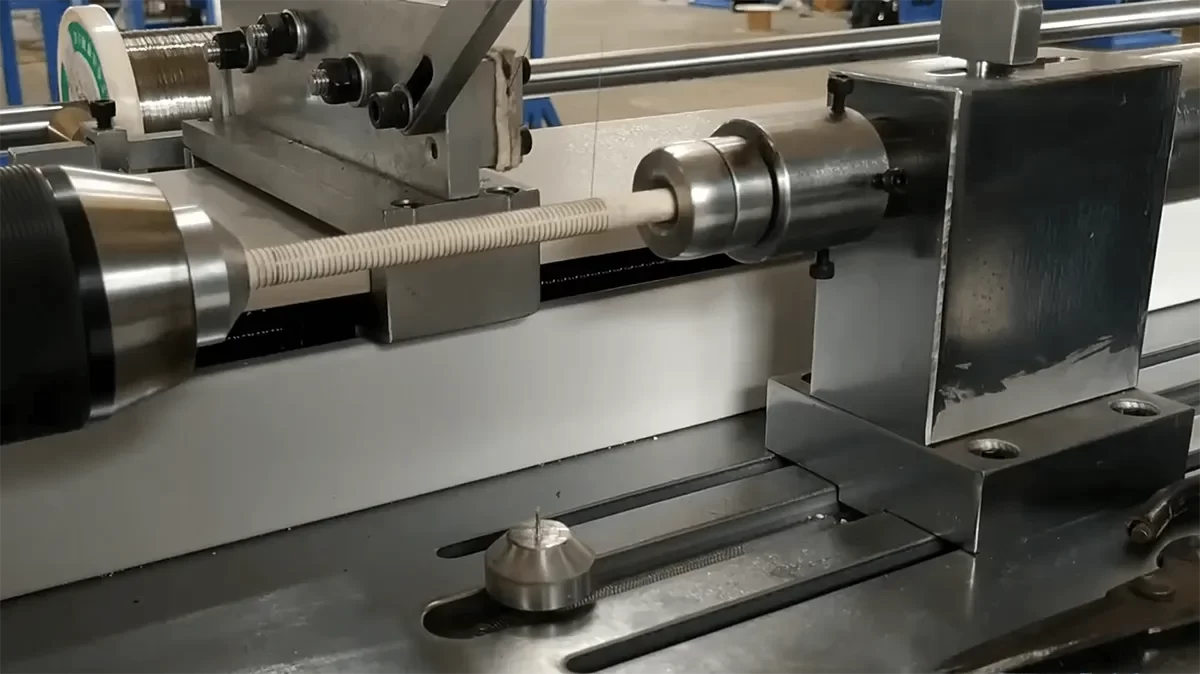

Zhenghe Machinery ZH-340 Winding machine for cartridge heater is designed to wind resistance wire on MgO rod for cartridge heater. It adopts speed adjustable motor to discharge wire and clamp tube(rod). Wire discharging device adopts ball bearing screw mandrel with high accuracy, uniform pitch and can be adjusted. Using lock circle to clamp the tube(rod), it is easy to put on and take out the tube(rod). You can set parameters like wire diameter, speed, pitch on the screen. It is special for wind the resistance wire for cartridge heater compare with our other winding machines.
*Samples or drawings of MgO rod.
*Wire sizes.
*Electrical supply (for example,single phase 220v 50hz).
*To be supplied by customer before delivery: About 10pcs MgO rod for final adjustments.
| Element Tube Length | Machine Size (mm) | Machine Size (mm) | Gross Weight (KG) | Net Weight (KG) |
|---|---|---|---|---|
| 2m | 3550*1000*1550 | 3750*1200*1750 | 980 | 850 |
| 3m | 4600*1000*1550 | 4800*1200*1750 | 1050 | 920 |
| 4m | 6000*1000*1550 | 4800*1200*1750 | 1120 | 990 |
| WARRANTY | Machine for one year, electric parts for half a year, wearing parts are not included. |
| PAYMENT | 50% advance payment, 50% before shipment. |
| DELIVERY TIME |
Normally in 60 days after getting advance payment and all the technical parameters we request. But it depends on how many machines you wish to purchase. |
|
PACKING DETAILS |
Merchandise is packed in sea worthy and weather proof firm wooden box. |
