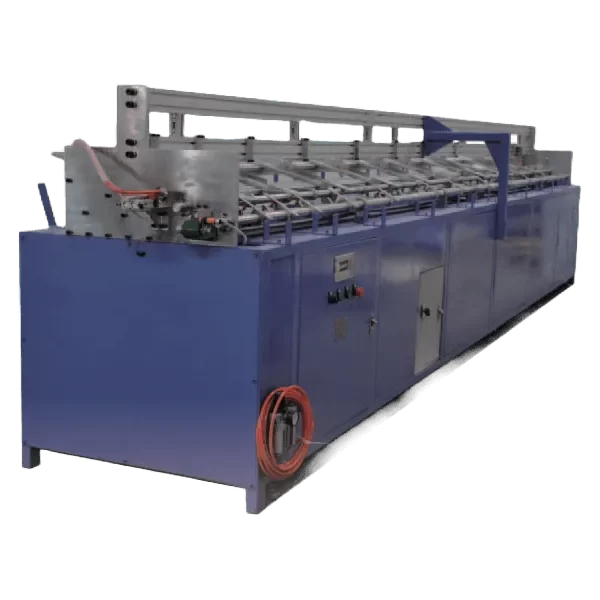

ZH-312 Feeding and Testing Machine

no need for human monitoring all the time

  • The machine has the advantages of simple operation
  • Reliable and flexible feeding
  • Feeding by belt
  • Save tubes
  • Labour saving/efficient operation
Get Quote Now !
Download Spec Sheet
Facebook Linkedin Youtube
ZH-312-Feeding-and-Testing-Machine-zt-imageonline.co-4387057

DESCCRIPTION

SPECIFICATION

RELATED PRODUCTS

TECH SUPPORT

Detailed Product Description

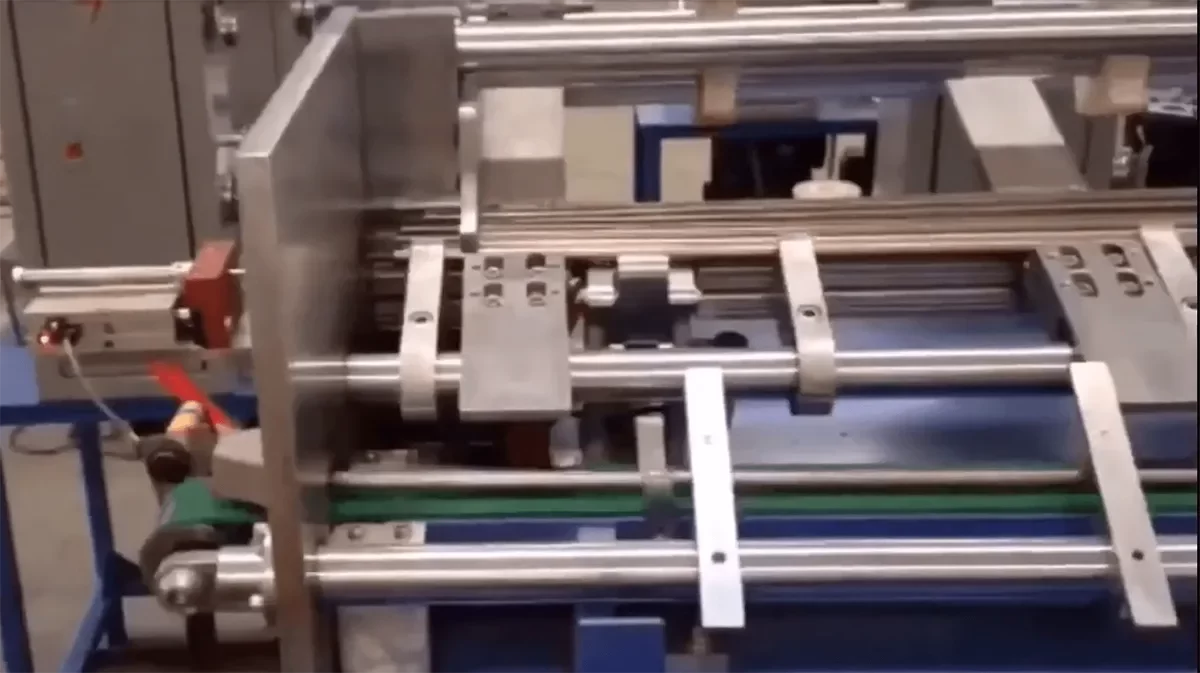

Zhenghe Machinery ZH-312 Feeding and testing machine is a special machine for testing the voltage and feeding tube automatically. The machine has the advantages of simple operation,ability to test and separate automatically and no need for human monitoring all the time. It is feeding by belt, while the ZH-107 Feeding and testing machine is feeding by chain.



*Labour saving/efficient operation.

*Reliable and flexible feeding.

*Feeding by belt.

*Save tubes.

imgi108791300-imageonline.co-2079983
imgi118790955-imageonline.co-2535020

SPECIFICATON

Functions:

  1.  PLC control. It feeds the heating elements with a consistent space between them.
  2.  Easy operation and no need for operator.
  3.  Tests the high voltage of heating elements and separates the bad product automatically.
  4.  Feeding speed can be adjusted.
  5.  For tube length over 2meters.

Main technical parameters:

  1.  Power supply: Single phase 220V 50Hz 60W.
  2.  Air supply: 5-7kg/cm2.
  3.  Feeding speed: 5-15m/min.
  4.  Tube diameter: 6.5mm-21.0mm.
  5.  Tube length: 100mm-1500mm.
  6.  Packing size (L*W*H): 3360*960*1500(mm) (tube length2.5meters).
  7.  Gross weight: 450kg.

Required information when ordering our ZH-312 Tube Feeding and Testing Machine

*Max. element tube length.

*Tube diameters.

*Electrical supply (for example, single phase 220v 50hz).

Notes: All the information above, which may be subject to change, is offered solely for your reference, and should not be taken as a warranty or representation for which we assume any legal responsibility.

parameter

Element Tube Length Machine Size (mm) Machine Size (mm) Gross Weight (KG) Net Weight (KG)
2m 3550*1000*1550 3750*1200*1750 980 850
3m 4600*1000*1550 4800*1200*1750 1050 920
4m 6000*1000*1550 4800*1200*1750 1120 990
WARRANTY Machine for one year, electric parts for half a year, wearing parts are not included.
PAYMENT 50% advance payment, 50% before shipment.
DELIVERY TIME Normally in 60 days after getting advance payment and all the technical parameters we request.
But it depends on how many machines you wish to purchase.
PACKING
DETAILS 		Merchandise is packed in sea worthy and weather proof firm wooden box.
