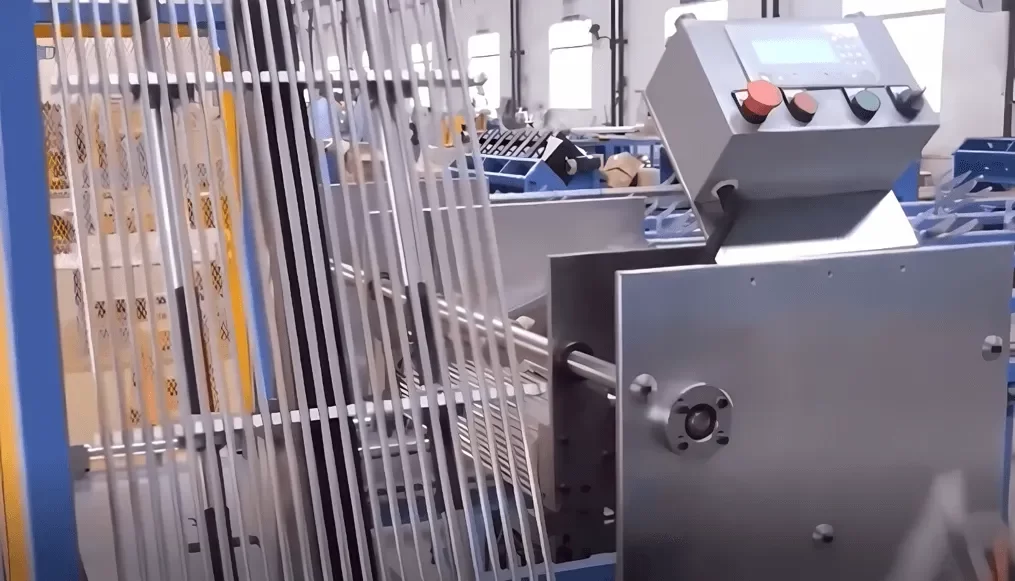

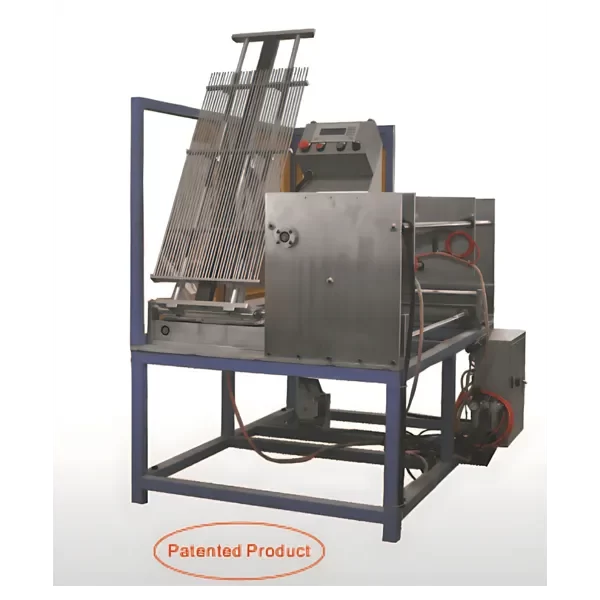

Zhenghe Intelligent ZH -305 Tube ranking machine is designed to rank tubes automatically for filling machine.
1.It reduces the worker’s work density and improves production efficiency.
2.It can adjust the hopper according to different tube length.
3.It can work automatically after adjustment. It is safe and reliable. It holds with small volume, compact structure. Easy for operation and maintenance.
1.It reduces the worker’s work density and improves production efficiency.
2.It can adjust the hopper according to different tube length.
3.It can work automatically after adjustment. It is safe and reliable. It holds with small volume, compact structure. Easy for operation and maintenance.
1. Air pressure: 4-7kgf/cm2.
2. Working voltage: 220v.
3. Voltage for sensor: 24v.
4. Packing size: L*W*H=1200*1140*1300mm.
5. Gross weight: 350kg.
*Tube length.
*Tube diameter and tube thickness.
*Terminal pin diameter.
*Terminal pin outside tube end length.
| Mandrel Size (mm) | Wire Diameter (mm) | Single Wire or Double Wires |
|---|---|---|
| 1 | 0.25 | Single Wire |
| 1.2 | 0.12–0.5 | Both |
| 1.65 | Below 0.45 | Both |
| 1.85 | Below 0.6 | Both |
| 1.9 | Below 0.75 | Both |
| 2.2 | Below 0.75 | Both |
| WARRANTY | Machine for one year, electric parts for half a year, wearing parts are not included. |
| PAYMENT | 50% advance payment, 50% before shipment. |
| DELIVERY TIME |
Normally in 60 days after getting advance payment and all the technical parameters we request. But it depends on how many machines you wish to purchase. |
|
PACKING DETAILS |
Merchandise is packed in sea worthy and weather proof firm wooden box. |
