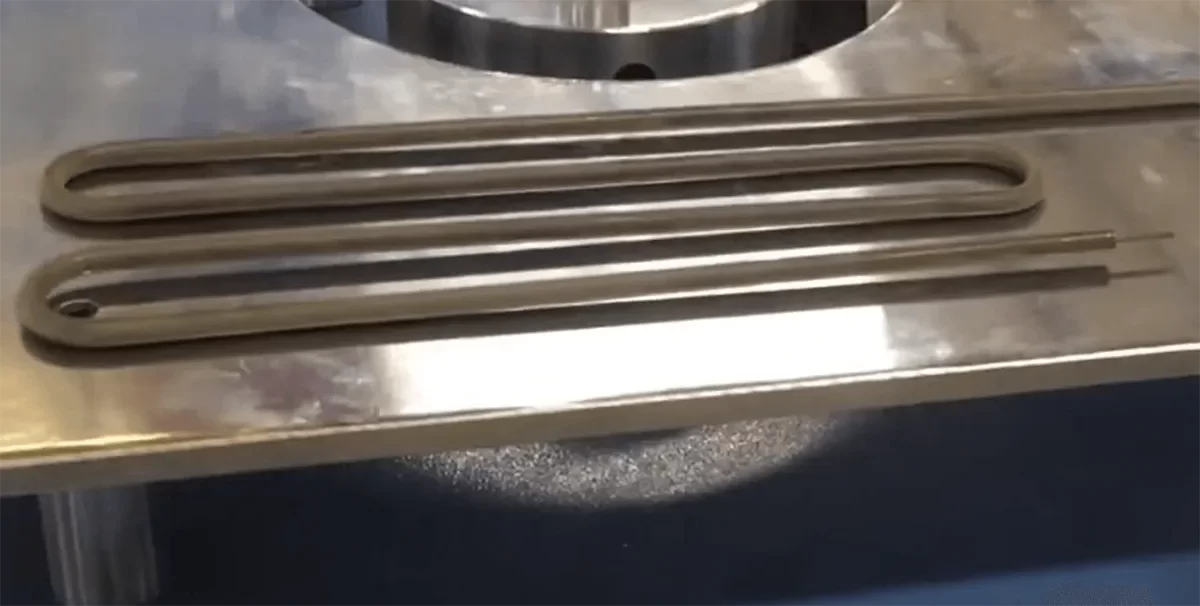

Zhenghe Intelligent ZH-301 Bending machine is used to bending heating elements to M shape or U shape. It apply motor rotation, transducer control speed, pneumatic tube bending. Two bending modes: bending forward and bending reversion. For reset: also reset forward and reset reversion for your choice. It improves production efficiency. The angle can be adjusted. Stable performance, easy to operation and maintenance.
1. Powder supply: AC 220V±10%/50Hz
2.Spindle speed:23rpm
3.Air supply:5-7KG/cm2
4.Motor power:1500W
5.Applicable tube diameter:6-12mm
1.PLC control, human-computer interface operation.
2. Bending drive and pith control drive apply servo motor. The bending angle and pitch could be set accurately in touch screen.
3. Three-jaw chuck clamping mold, easy to change the mold.
1. Powder supply: AC 220V±10%/50Hz
2.Spindle speed:23rpm
3.Air supply:5-7KG/cm2
4.Motor power:1500W
5.Applicable tube diameter:6-12mm
*Tube drawings
*Electrical supply (for example, single phase 220v 50hz)
*To be supplied by customer before delivery: at least 50 pieces heater for final adjustments.
| Model | Power supply | Motor power (W) | Applicable tube diameter (mm) | Applicable tube length (mm) | Applicable tube length (mm) | Machine size (mm) | Gross weight (KG) | Net weight (KG) |
|---|---|---|---|---|---|---|---|---|
| 3 stations | Tri-phase 380V 60HZ |
1500 | 5-21 | Above 250 | 1500*850*1500 | 1300*700*1200 | 450 | 350 |
| 6 stations | Tri-phase 380V 60HZ |
2200 | 6.6-18 | Above 250 | 2000*1000*1500 | 1800*850*1200 | 950 | 850 |
| WARRANTY | Machine for one year, electric parts for half a year, wearing parts are not included. |
| PAYMENT | 50% advance payment, 50% before shipment. |
| DELIVERY TIME |
Normally in 60 days after getting advance payment and all the technical parameters we request. But it depends on how many machines you wish to purchase. |
|
PACKING DETAILS |
Merchandise is packed in sea worthy and weather proof firm wooden box. |
