ZH-266 X Shape Aluminum Heater Rolling Machine

used for shrinking X shape aluminum heater diameter to increase MgO powder density inside.

  • Flatness : – 1: 300.
  • Small size, low noise, stable performance.
  • Power supply: 3 phase 380±10%, 50Hz.
  • Rated power: 5.8Kw.
  • Current: 18A.
Get Quote Now !
Download Spec Sheet
Facebook Linkedin Youtube
ZH-266-X-Shape-Aluminum-Heater-Rolling-Machine--zt-imageonline.co-4496383

DESCCRIPTION

SPECIFICATION

RELATED PRODUCTS

TECH SUPPORT

Detailed Product Description

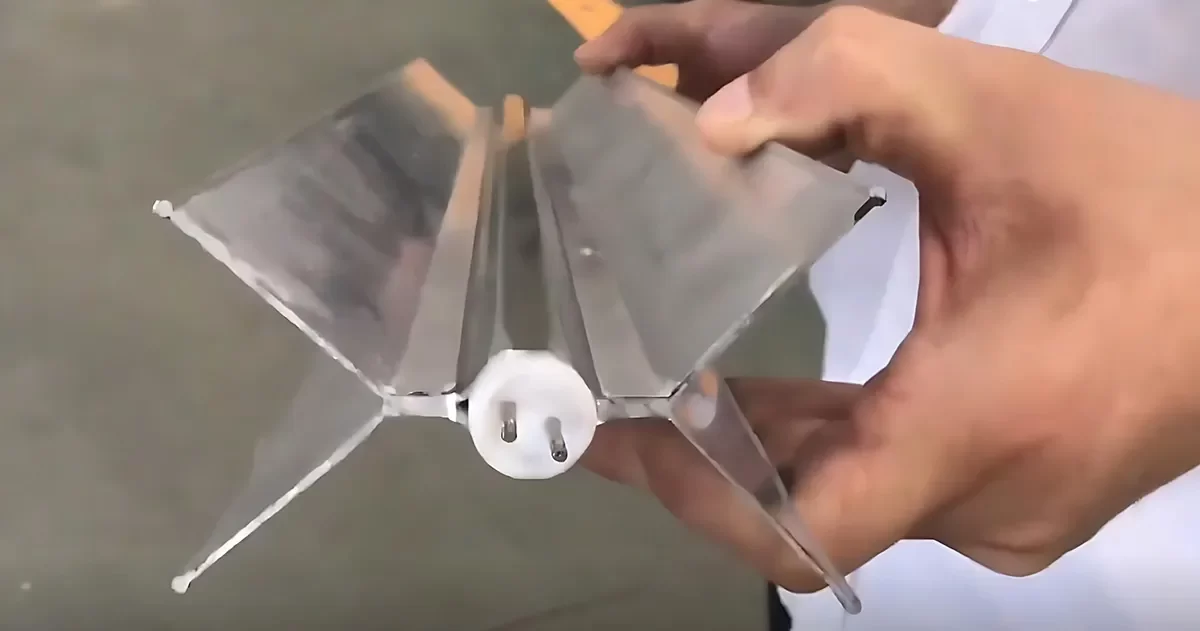

Zhenghe Machinery X shape aluminum heater roll reduction mill is used for shrinking X shape aluminum heater diameter to increase MgO powder density inside.



imgi109542562-imageonline.co-5180834
imgi118824414-imageonline.co-8860957

SPECIFICATON

Functions:

  1. Flatness : –    1: 300.
  2. Small size, low noise, stable performance.

Main technical parameters:

  1. Power supply: 3 phase 380±10%, 50Hz.
  2. Rated power: 5.8Kw.
  3. Current: 18A.
  4. Speed: 17.5m/min.
  5. Size(L×W×H): 2090× 900×1150mm.

Required information when ordering our ZH-266 X shape aluminum heater rolling machine

*Drawings before and after rolling.

*Electrical supply(for example,single phase 220v 50hz).

*To be supplied by customer before delivery: at least 50 pieces length longer than 200mm heater for final adjustments.

Notes: All the information above, which may be subject to change, is offered solely for your reference, and should not be taken as a warranty or representation for which we assume any legal responsibility.

parameter

Element Tube Length Machine Size (mm) Machine Size (mm) Gross Weight (KG) Net Weight (KG)
2m 3550*1000*1550 3750*1200*1750 980 850
3m 4600*1000*1550 4800*1200*1750 1050 920
4m 6000*1000*1550 4800*1200*1750 1120 990
WARRANTY Machine for one year, electric parts for half a year, wearing parts are not included.
PAYMENT 50% advance payment, 50% before shipment.
DELIVERY TIME Normally in 60 days after getting advance payment and all the technical parameters we request.
But it depends on how many machines you wish to purchase.
PACKING
DETAILS 		Merchandise is packed in sea worthy and weather proof firm wooden box.
