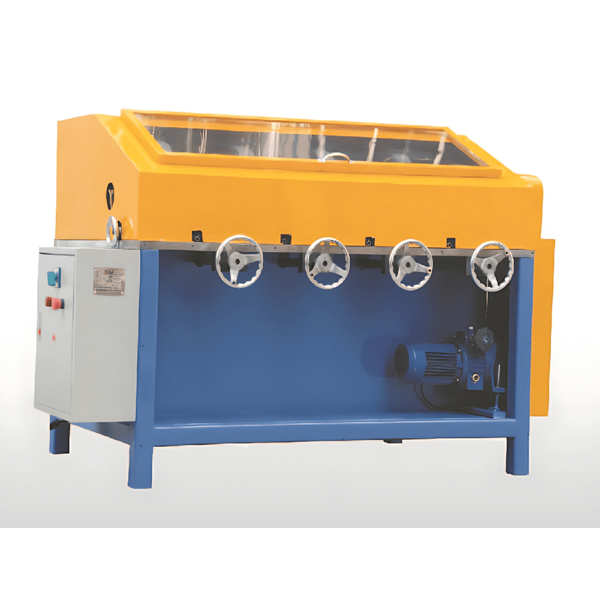

ZH-256 Semiautomatic polishing machine is one of the polishing equipment designed and manufactured by our factory. It can polish various round metal materials including stainless steel tubes(rods) and iron tubes(rods) after annealing. It also can be adjusted according to the size of tubes. The machine has the characteristics of simple operation, good polishing efficiency, reliable performance and high production.
*Polishing wheel import from Japan.
*Four sets of polishing wheels.
*Polish short tubular heating elements.
*Can make multi-stations polishing machines to the requirement of customers.
1. The tube diameter can be adjusted, easy to operate.
2. Imported polishing roller.
3. Low noise, high quality.
4. Use import polishing wheel for long life.
1. Power supply: Tri-phase 380V, 50Hz.
2. Rated power: 1.7KW.
3. Rated input capacity: 6.5KVA.
4. Insulation grade: F.
5. Applicable tube diameter: 5mm-20mm.
6. Size(L*W*H): 900*800*1000 (mm).
7. Weight: 750kg.
*Tube diameter and tube thickness.
*Tube material.
*Max. tube length.
*Electrical supply (for example, single phase 220v 50hz).
| Model | Power supply | Motor power (W) | Applicable tube diameter (mm) | Applicable tube length (mm) | Applicable tube length (mm) | Machine size (mm) | Gross weight (KG) | Net weight (KG) |
|---|---|---|---|---|---|---|---|---|
| 3 stations | Tri-phase 380V 60HZ |
1500 | 5-21 | Above 250 | 1500*850*1500 | 1300*700*1200 | 450 | 350 |
| 6 stations | Tri-phase 380V 60HZ |
2200 | 6.6-18 | Above 250 | 2000*1000*1500 | 1800*850*1200 | 950 | 850 |
| WARRANTY | Machine for one year, electric parts for half a year, wearing parts are not included. |
| PAYMENT | 50% advance payment, 50% before shipment. |
| DELIVERY TIME |
Normally in 60 days after getting advance payment and all the technical parameters we request. But it depends on how many machines you wish to purchase. |
|
PACKING DETAILS |
Merchandise is packed in sea worthy and weather proof firm wooden box. |
