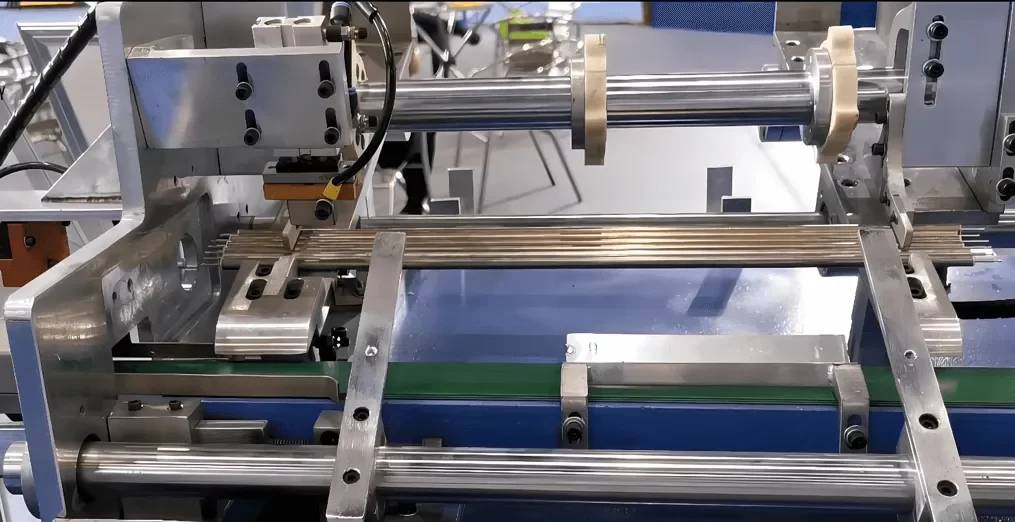

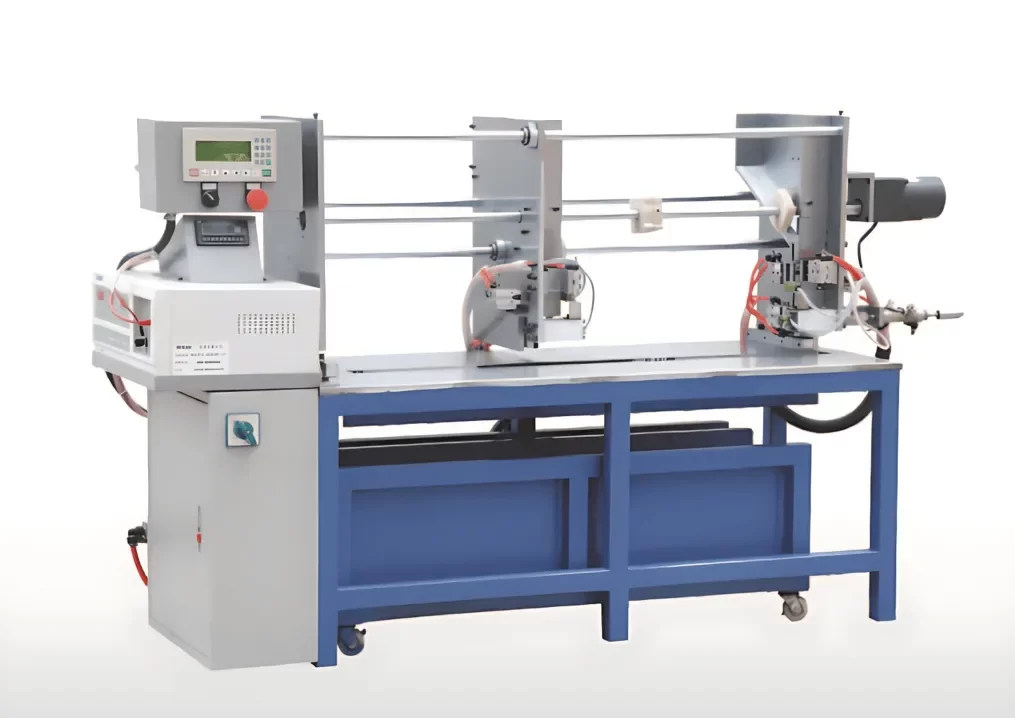

Zhenghe Intelligent ZH -253 Testing machine which is developed by us. The machine is developed according to the production demand of tubular heaters and combined with practical operation. The machine is used to test the resistance and high voltage after rolling machine. The machine feeds and processes automatically. One man can operate several machines because of human-computer operation, which enhances the production efficiency and reduces the cost. The machine adapts to the production demand and reduces the workload and really embodies the tendency of no man operating the machine in the workshop.
1. Power supply: 220V,50HZ,500W.
2. Processing length of the element: 150~800mm.
3. Element diameter: φ6~φ12, TP is less than φ3.
4. Efficiency(8h): 5000-8000pcs.
5. Air supply: 5~7kg/cm2.
6.Rated power: 100W.
7. Overall dimension(L*W*H): 1700*600*1000mm. 8. Weight: 230kg.
*Tube diameter.
*Tube length.
*Electrical supply (for example, single phase 220v 50hz).
*To be supplied by customer before delivery: About 20 pieces elements tubes for final adjustments.
1. Power supply: 220V,50HZ,500W.
2. Processing length of the element: 150~800mm.
3. Element diameter: φ6~φ12, TP is less than φ3.
4. Efficiency(8h): 5000-8000pcs.
5. Air supply: 5~7kg/cm2.
6. Rated power: 100W.
7. Overall dimension(L*W*H): 1700*600*1000mm.
8. Weight: 230kg.
*Tube length.
*Electrical supply (for example, single phase 220v 50hz).
*To be supplied by customer before delivery: About 20 pieces elements tubes for final adjustments.
| Mandrel Size (mm) | Wire Diameter (mm) | Single Wire or Double Wires |
|---|---|---|
| 1 | 0.25 | Single Wire |
| 1.2 | 0.12–0.5 | Both |
| 1.65 | Below 0.45 | Both |
| 1.85 | Below 0.6 | Both |
| 1.9 | Below 0.75 | Both |
| 2.2 | Below 0.75 | Both |
| WARRANTY | Machine for one year, electric parts for half a year, wearing parts are not included. |
| PAYMENT | 50% advance payment, 50% before shipment. |
| DELIVERY TIME |
Normally in 60 days after getting advance payment and all the technical parameters we request. But it depends on how many machines you wish to purchase. |
|
PACKING DETAILS |
Merchandise is packed in sea worthy and weather proof firm wooden box. |
