ZH-185 M Shape Tube Bending Machine For Heating Element

Can bend heating elements to different shapes

  • One bending head
  • Can bend 1-4pcs at a time
  • Tube diameter:6-10mm
  • Max. bending Radius:R50mm
  • 14″ touch screen
Get Quote Now !
Download Spec Sheet
Facebook Linkedin Youtube

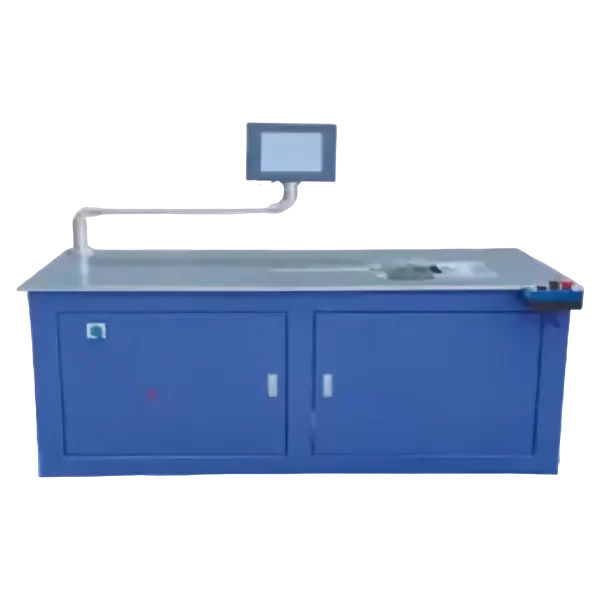

ZH-185-M-Shape-Tube-Bending-Machine-For-Heating-Element--zt-imageonline.co-6807681

DESCCRIPTION

SPECIFICATION

RELATED PRODUCTS

TECH SUPPORT

Detailed Product Description

Zhenghe Machinery ZH-185 Bending machine is designed to bend heating elements to different shapes.This machine has only 1 bending head. If you prefer 3 different bending heads, please choose our ZH-377 CNC bending machine.



*One bending head.
*Can bend 1-4pcs at a time.
*Tube diameter:6-10mm.
*Max. bending Radius:R50mm.

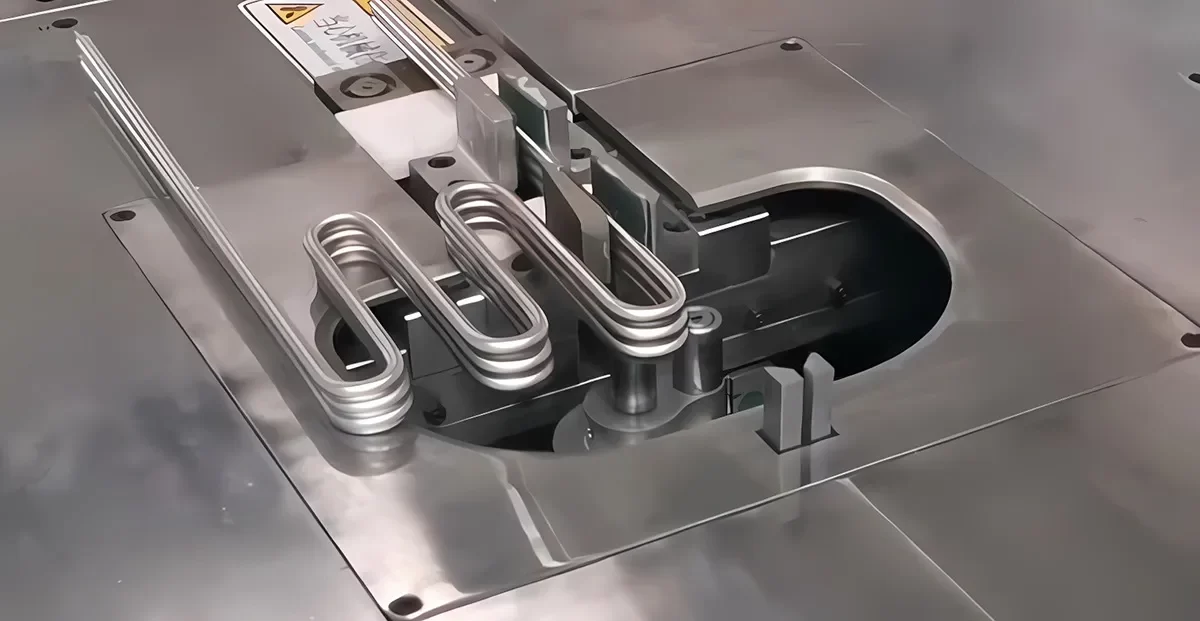

imgi109539780-imageonline.co-1553521

SPECIFICATON

Functions:

  • 14″ touch screen, operation instruction is attached.
  • PLC control, change the parameters according to your requirement.
  • Servo motor controls bending and feeding, the speed, angle and length can be adjusted.
  • Pneumatic clamping and can bend 1-4pcs tubes at a time.

Main technical parameters:

  • Power supply: Single-phase 220V, 50Hz.
  • Rated power: 4KW.
  • Air supply: 5-7kg/cm2.
  • Tube diameter: 6-10mm.
  • Packing size (L*W*H):1900*1000*1700 (mm)
  • Gross weight: 1000kg.

Required information when ordering our ZH-185 Bending machine for tubular heater

*Tube material.

*Heating elements drawings.

*Electrical supply (for example,  phase 220v 50hz)

Notes: All the information above, which may be subject to change, is offered solely for your reference, and should not be taken as a warranty or representation for which we assume any legal responsibility.

parameter

Element Tube Length Machine Size (mm) Machine Size (mm) Gross Weight (KG) Net Weight (KG)
2m 3550*1000*1550 3750*1200*1750 980 850
3m 4600*1000*1550 4800*1200*1750 1050 920
4m 6000*1000*1550 4800*1200*1750 1120 990
WARRANTY Machine for one year, electric parts for half a year, wearing parts are not included.
PAYMENT 50% advance payment, 50% before shipment.
DELIVERY TIME Normally in 60 days after getting advance payment and all the technical parameters we request.
But it depends on how many machines you wish to purchase.
PACKING
DETAILS 		Merchandise is packed in sea worthy and weather proof firm wooden box.
