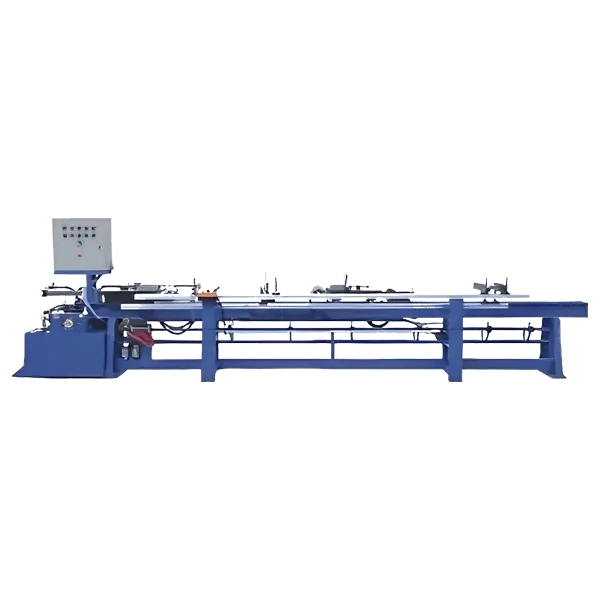

ZH-159 Stretching machine

Advanced technology which save cost

  • Hydraulic stretching, stable quality
  • PLC control, easy to operate
  • Accuracy: +/-0.5mm
  • Advanced technology which save cost.
  • Efficiency: 5000pcs/8h
Get Quote Now !
Download Spec Sheet
Facebook Linkedin Youtube
ZH-159-Stretching-machine--zt-imageonline.co-5475864

DESCCRIPTION

SPECIFICATION

RELATED PRODUCTS

TECH SUPPORT

Detailed Product Description

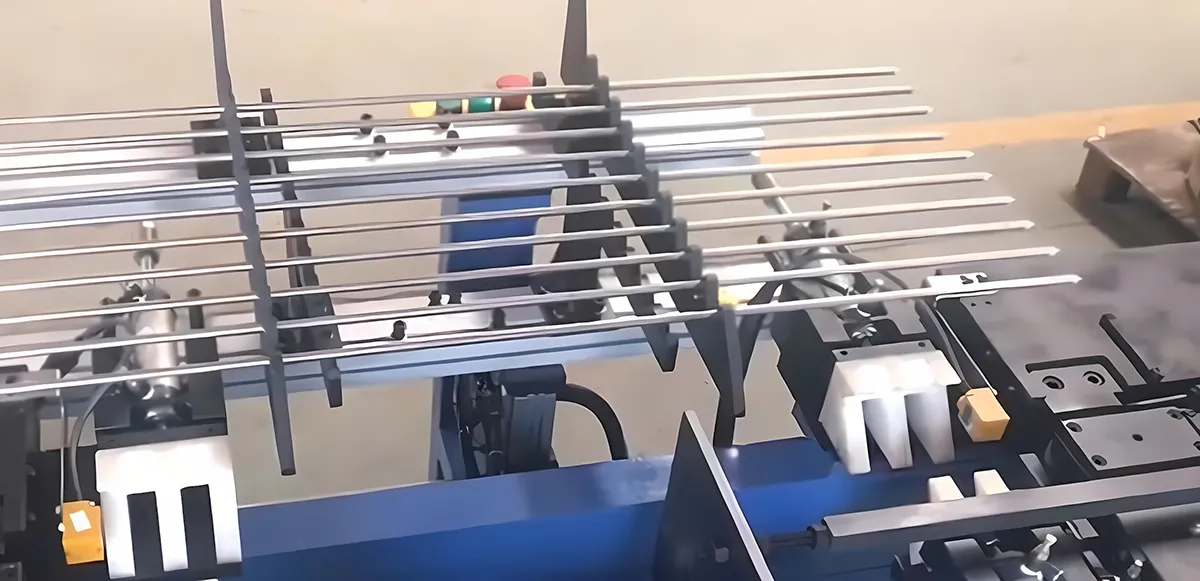

Zhenghe Machinery ZH-159 Stretching machine is used to stretch annealed heating elements to the same length after rolling. It can be equipped with loading automatic loading and discharging device.


imgi109273905-imageonline.co-4056645

SPECIFICATON

Functions:

  1. Advanced technology which save cost.
  2. Hydraulic stretching, stable quality.
  3. PLC control, easy to operate.
  4. Accuracy: +/-0.5mm.
  5. Manual feeding.

Main technical parameters:

  1. Power supply: 3phase 380V 50Hz (can be custom-made).
  2. Rated power: 3.8KW.
  3. Air supply: 5-7 kg/cm2.
  4. Hydraulic pressure: 60~70kgf/ cm2.
  5. Tube diameter: 6mm-16mm (can be custom-made).
  6. Efficiency: 5000pcs/8h.
  7. Machine sizes:

Required information when ordering our ZH-159 Tube stretching machine

*Tube diameters and tube thickness.

*Max.element length.

*Tube material.

*Electrical supply (for example, single phase 220v 50hz).

*To be supplied by customer before delivery: About 50 pieces heater for final adjustments.

Notes: All the information above, which may be subject to change, is offered solely for your reference, and should not be taken as a warranty or representation for which we assume any legal responsibility.

parameter

Element Tube Length Machine Size (mm) Machine Size (mm) Gross Weight (KG) Net Weight (KG)
2m 3550*1000*1550 3750*1200*1750 980 850
3m 4600*1000*1550 4800*1200*1750 1050 920
4m 6000*1000*1550 4800*1200*1750 1120 990
WARRANTY Machine for one year, electric parts for half a year, wearing parts are not included.
PAYMENT 50% advance payment, 50% before shipment.
DELIVERY TIME Normally in 60 days after getting advance payment and all the technical parameters we request.
But it depends on how many machines you wish to purchase.
PACKING
DETAILS 		Merchandise is packed in sea worthy and weather proof firm wooden box.
