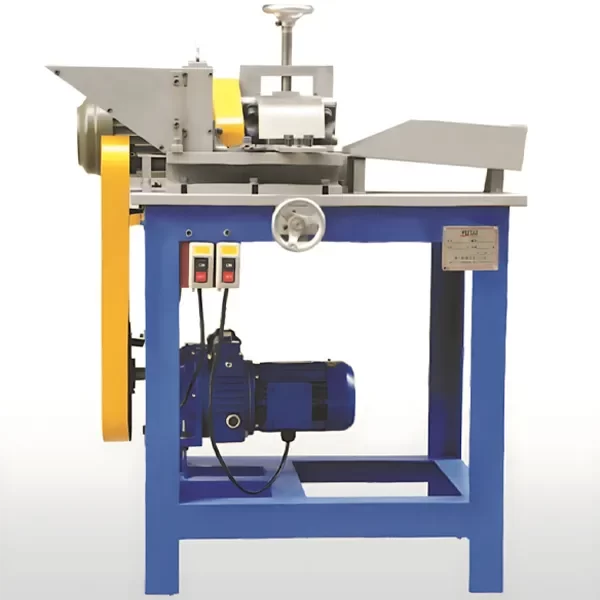

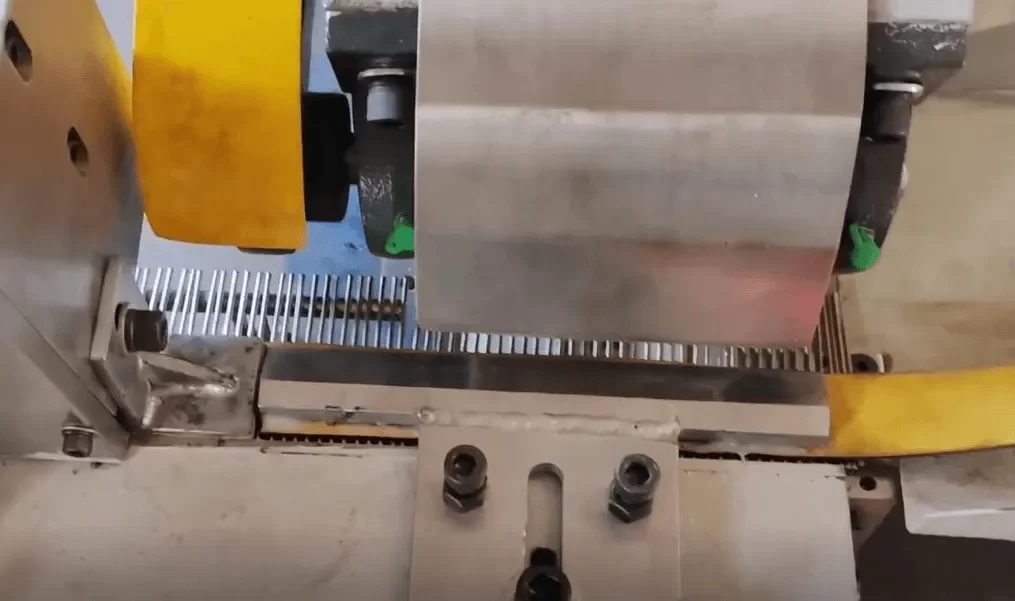

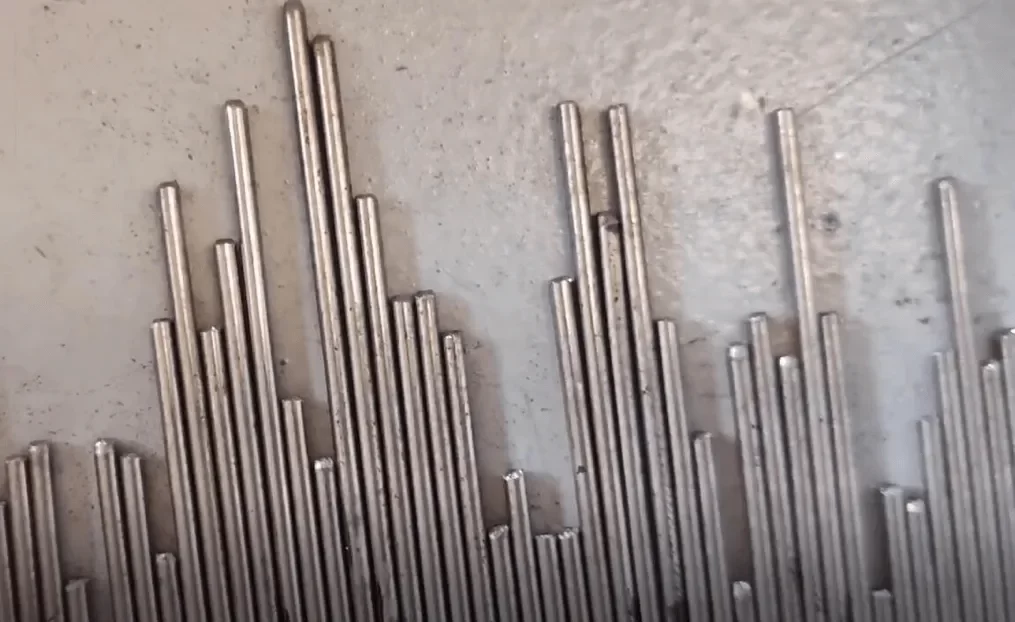

Zhenghe Intelligent ZH-132 Terminal pin chamfering machine is developed by our factory according to the processing requirement and years of experience. It is designed to deburr or chamfer the terminal pin ends. The machine has the advantage of small dimension, simple operation and high production etc.
1. Power supply: 3 phase 380V 50Hz (can be custom-made).
2. Rated power: 1.1KW.
3. Pin diameter: 1.5-3.0mm (can be custom-made).
4. Pin length: 40mm-120mm (can be custom-made).
5. Efficiency: 40000-70000pcs/8h.
6. Packing size (L*W*H): 900*850*1200 (mm).
7. Gross weight: 320kg.
1. Stepless motor controls the speed.
1. Power supply: 3 phase 380V 50Hz (can be custom-made).
2. Rated power: 1.1KW.
3. Pin diameter: 1.5-3.0mm (can be custom-made).
4. Pin length: 40mm-120mm (can be custom-made).
5. Efficiency: 40000-70000pcs/8h.
6. Packing size (L*W*H): 900*850*1200 (mm).
7. Gross weight: 320kg.
*Pin drawing.
*Electrical supply (for example, single phase 220v 50hz).
| Element Tube Length | Machine Size (mm) | Machine Size (mm) | Gross Weight (KG) | Net Weight (KG) |
|---|---|---|---|---|
| 2m | 3550*1000*1550 | 3750*1200*1750 | 980 | 850 |
| 3m | 4600*1000*1550 | 4800*1200*1750 | 1050 | 920 |
| 4m | 6000*1000*1550 | 4800*1200*1750 | 1120 | 990 |
| WARRANTY | Machine for one year, electric parts for half a year, wearing parts are not included. |
| PAYMENT | 50% advance payment, 50% before shipment. |
| DELIVERY TIME |
Normally in 60 days after getting advance payment and all the technical parameters we request. But it depends on how many machines you wish to purchase. |
|
PACKING DETAILS |
Merchandise is packed in sea worthy and weather proof firm wooden box. |
