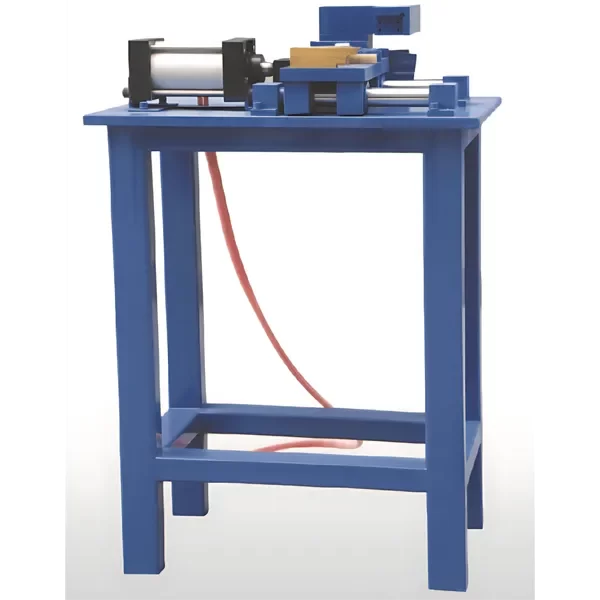

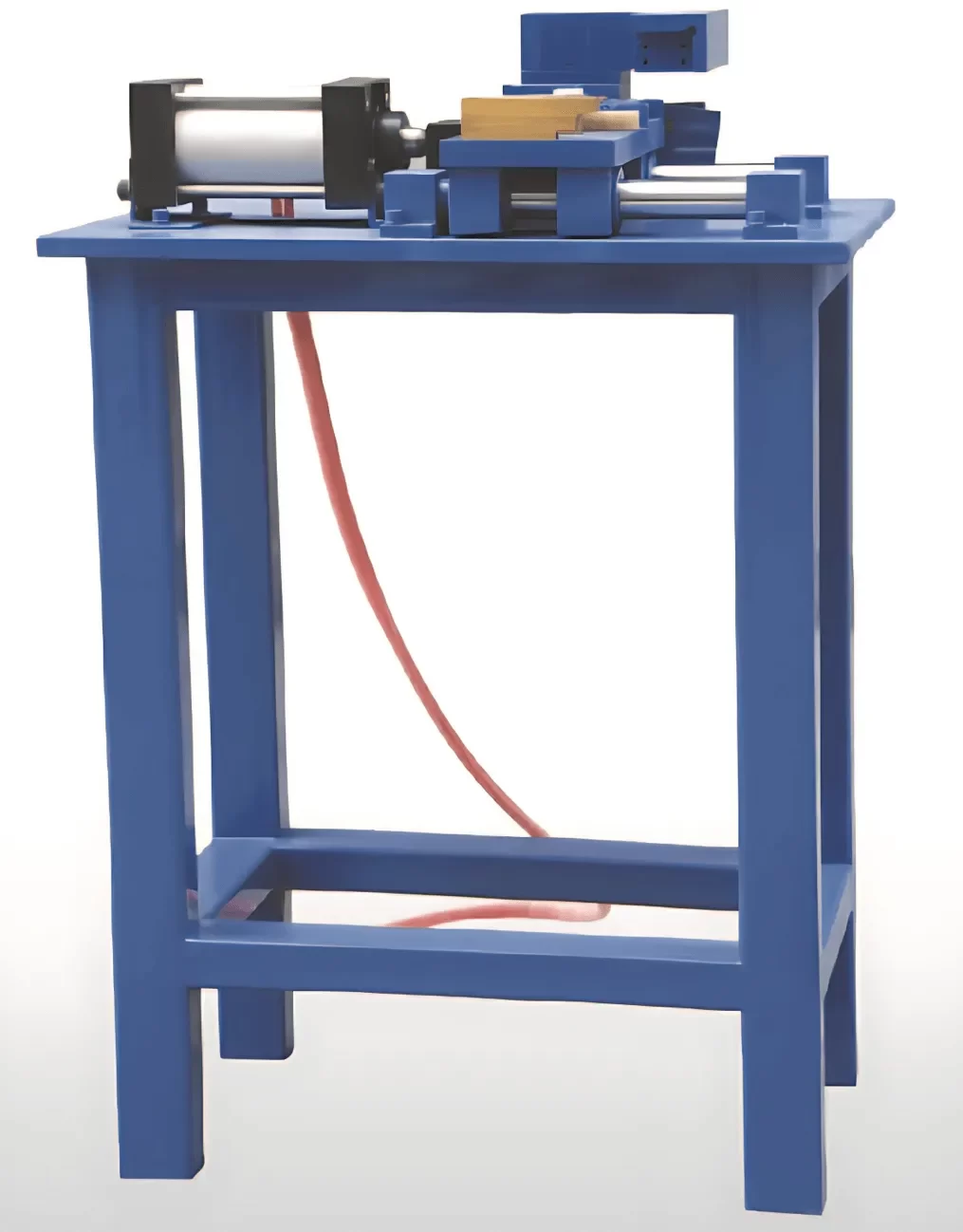

Zhenghe Intelligent ZH-128 stamping machine is one of the stamping equipment designed and manufactured by our factory. It is a special stamping machine which stamps numbers or letters (For example, logo and voltage.) in circle or linear on the surface of the straight heating element tubes by utilizing the extrusion theory and pneumatic cylinder.
*No length limit.
*No need power supply.
1. Cylinder drive, easy to operate, no power supply required.
2. Tube diameter can be adjusted.
1. Air supply: 4-7kg/cm2.
2. Tube diameter: 5mm-20mm.
3. Tube length: ≥100mm.
4. Efficiency: 5000pcs-8000pcs/8h.
5. Packing size (L*W*H): 600*750*1100 (mm).
6. Gross weight: 100kg.
*Tube diameter.
*In linear or in circle.
*Specific letters and numbers.
*Font.
| Model | Power supply | Motor power (W) | Applicable tube diameter (mm) | Applicable tube length (mm) | Applicable tube length (mm) | Machine size (mm) | Gross weight (KG) | Net weight (KG) |
|---|---|---|---|---|---|---|---|---|
| 3 stations | Tri-phase 380V 60HZ |
1500 | 5-21 | Above 250 | 1500*850*1500 | 1300*700*1200 | 450 | 350 |
| 6 stations | Tri-phase 380V 60HZ |
2200 | 6.6-18 | Above 250 | 2000*1000*1500 | 1800*850*1200 | 950 | 850 |
| WARRANTY | Machine for one year, electric parts for half a year, wearing parts are not included. |
| PAYMENT | 50% advance payment, 50% before shipment. |
| DELIVERY TIME |
Normally in 60 days after getting advance payment and all the technical parameters we request. But it depends on how many machines you wish to purchase. |
|
PACKING DETAILS |
Merchandise is packed in sea worthy and weather proof firm wooden box. |
