ZH-123 U shape tube bending machine for heating element

designed to bend heating elements to U shape

  • Can be for different R.
  • Can bend 1-4pcs at a time.
  • Pneumatic bending, high efficiency.
  • Bend up side, save space.
  • Center the element automatically, assure the parallelism of bent tubes.
Get Quote Now !
Download Spec Sheet
Facebook Linkedin Youtube

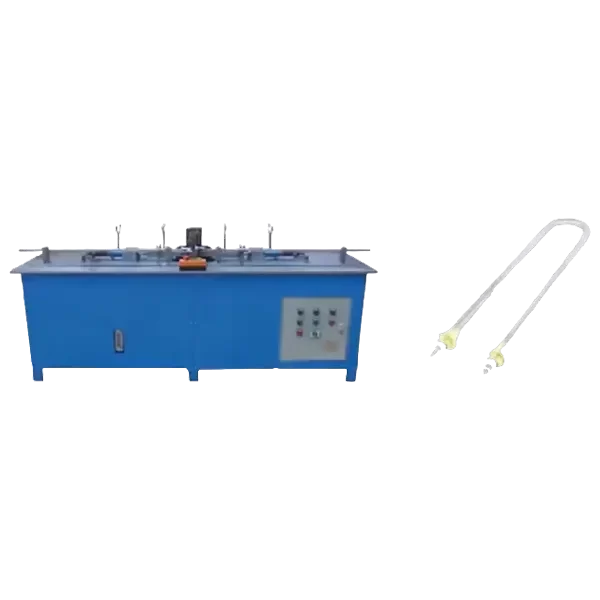

ZH-123-U-shape-tube-bending-machine-for-heating-element-zt-imageonline.co-9576115

DESCCRIPTION

SPECIFICATION

RELATED PRODUCTS

TECH SUPPORT

Detailed Product Description

Zhenghe Machinery ZH-123 U shape bending machine is designed to bend heating elements to U shape.



*Can be for different R.

*Can bend 1-4pcs at a time.

*Center the element automatically, assure the parallelism of bent tubes.

*Pneumatic bending, high efficiency. Bend up side, save space.

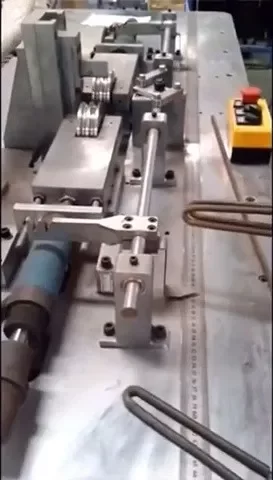

imgi108704650-imageonline.co-5836668

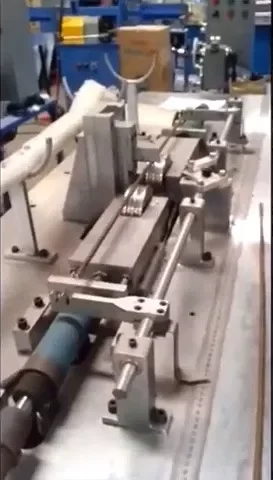

imgi118704649-imageonline.co-6791838

SPECIFICATON

Functions:

  1. Center the element automatically, assure the parallelism of bent tubes.
  2. Pneumatic bending, high efficiency.
  3. Bend up side, save space.

Main technical parameters:

  1. Power supply: 220V, 50Hz.
  2. Air supply: 5-7kg/cm2.
  3. Rated power: 200W.
  4. Applicable tube length: 200mm-1000mm.
  5. Applicable tube diameter: 6mm-12mm.
  6. Efficiency: 6000pcs-8000pcs/8h.
  7. Size (L*W*H): 2000*80*80 (mm).
  8. Weight: 150kg.

Required information when ordering our ZH-123 Bending machine for electric heater

*Tube material.

*Tube diameter and tube thickness.

*R for each tube diameter.

*Max.tube length.

*Electrical supply (for example, single phase 220v 50hz).

Notes: All the information above, which may be subject to change, is offered solely for your reference, and should not be taken as a warranty or representation for which we assume any legal responsibility.

parameter

Element Tube Length Machine Size (mm) Machine Size (mm) Gross Weight (KG) Net Weight (KG)
2m 3550*1000*1550 3750*1200*1750 980 850
3m 4600*1000*1550 4800*1200*1750 1050 920
4m 6000*1000*1550 4800*1200*1750 1120 990
WARRANTY Machine for one year, electric parts for half a year, wearing parts are not included.
PAYMENT 50% advance payment, 50% before shipment.
DELIVERY TIME Normally in 60 days after getting advance payment and all the technical parameters we request.
But it depends on how many machines you wish to purchase.
PACKING
DETAILS 		Merchandise is packed in sea worthy and weather proof firm wooden box.
