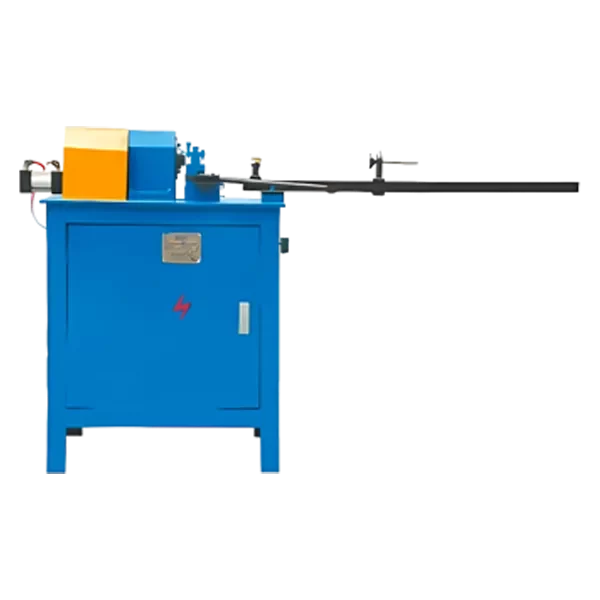

ZH-120 Manual Pipe Cutting Machine

Burr-free ends on the tubes

  • Tube rotate, cutting tool not rotate
  • high efficiency, easy operation
  • Pneumatic clamping, automatic cutting
  • Element rotates, automatic stop when loading finished.
  • Cut by cutting tool
  • designed to cut copper, steel, aluminum and stainless steel
Get Quote Now !
Download Spec Sheet
Facebook Linkedin Youtube
ZH-120--Manual-Pipe-Cutting-Machine-zt-imageonline.co-7357399

DESCCRIPTION

SPECIFICATION

RELATED PRODUCTS

TECH SUPPORT

Detailed Product Description

ZH  Machinery ZH-120 Manual pipe cutting machine is designed to cut copper, steel, aluminum and stainless steel (precut) tubes into the desired final lengths. It is designed to operate separately.



*Cut by cutting tool.
*Tube rotate, cutting tool not rotate.
*Change collet for different tube diameter.
*Clean cut.

imgi98615239-imageonline.co-2162310
imgi118726599-imageonline.co-8176843

SPECIFICATON

Functions:

  1. Pneumatic clamping, automatic cutting.
  2. Element rotates, automatic stop when loading finished.
  3. Burr-free ends on the tubes, high efficiency, easy operation.

Main technical parameters:

  1. Power supply: 3 phase 380V, 50Hz (can be custom-made).
  2. Rated power: 0.8KW.
  3. Air supply: 5-7kg/cm2.
  4. Tube diameter: 6-16mm.
  5. Efficiency: 8000pcs-10000pcs/8h.
  6. Packing size (L*W*H): 750*800*1150 (mm).
  7. Gross weight: 170kg

Required information when ordering our ZH-120 Semiautomatic tube cutting machine

*Tube diameter and tube thickness.

*Tube material.

*Tube length.

*Electrical supply (for example, single phase 220v 50hz).

Notes: All the information above, which may be subject to change, is offered solely for your reference, and should not be taken as a warranty or representation for which we assume any legal responsibility.

parameter

Element Tube Length Machine Size (mm) Machine Size (mm) Gross Weight (KG) Net Weight (KG)
2m 3550*1000*1550 3750*1200*1750 980 850
3m 4600*1000*1550 4800*1200*1750 1050 920
4m 6000*1000*1550 4800*1200*1750 1120 990
WARRANTY Machine for one year, electric parts for half a year, wearing parts are not included.
PAYMENT 50% advance payment, 50% before shipment.
DELIVERY TIME Normally in 60 days after getting advance payment and all the technical parameters we request.
But it depends on how many machines you wish to purchase.
PACKING
DETAILS 		Merchandise is packed in sea worthy and weather proof firm wooden box.
