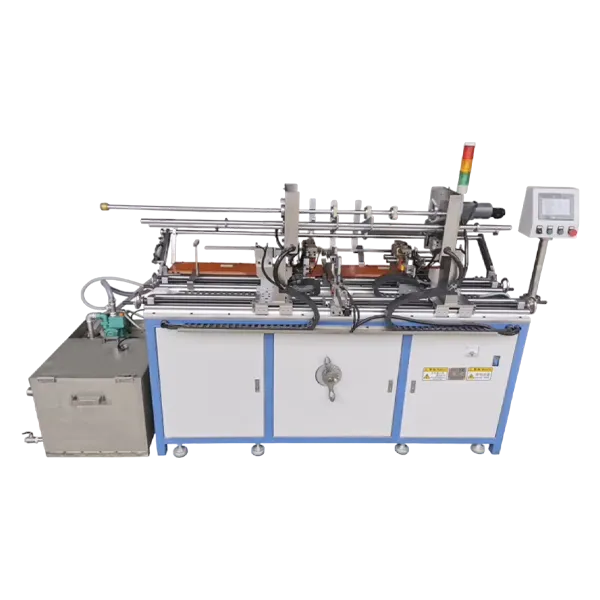

ZH-113A Automatic loading and partial annealing machine

Used for automatically loading

  • MgO & heater will get little heat
  • Time relay controls the annealing time.
  • Pneumatic clamping, safe and convenient.
  • There will be little bend when there is heat extension.
  • Efficiency: 5000pcs/8h
Get Quote Now !
Download Spec Sheet
Facebook Linkedin Youtube
ZH-113A-Automatic-loading-and-partial-annealing-machine--zt-imageonline.co-2774968

DESCCRIPTION

SPECIFICATION

RELATED PRODUCTS

TECH SUPPORT

Detailed Product Description

Used for automatically loading, partial annealing different material heating elements to make it soft for bending and unloading.


imgi108693053-imageonline.co-1687937

SPECIFICATON

Functions:

  1. Heating the tube surface by low voltage high-current short so that the MgO & heater will get little heat.
  2. Time relay controls the annealing time.
  3. Eight kinds of power and voltage can apply to various specifications of tubes.
  4. Pneumatic clamping, safe and convenient.
  5. Flexible design of copper collet, there will be little bend when there is heat extension.

Main technical parameters:

  1. Power supply: 3 phase 380±10%，
  2. Air supply: 0.5Mpa.
  3. Tube diameter: Φ6~Φ15.
  4. Annealing tube length:160~1500mm.
  5. Size(L*W*H): 2200×1600×1500mm

Required information when ordering our ZH-113A Automatic loading and partial annealing machine

*Tube diameter.

*Tube length.

*Tube material.

*Electrical supply (for example, single phase 220v 50hz).

Notes: All the information above, which may be subject to change, is offered solely for your reference, and should not be taken as a warranty or representation for which we assume any legal responsibility.

parameter

Element Tube Length Machine Size (mm) Machine Size (mm) Gross Weight (KG) Net Weight (KG)
2m 3550*1000*1550 3750*1200*1750 980 850
3m 4600*1000*1550 4800*1200*1750 1050 920
4m 6000*1000*1550 4800*1200*1750 1120 990
WARRANTY Machine for one year, electric parts for half a year, wearing parts are not included.
PAYMENT 50% advance payment, 50% before shipment.
DELIVERY TIME Normally in 60 days after getting advance payment and all the technical parameters we request.
But it depends on how many machines you wish to purchase.
PACKING
DETAILS 		Merchandise is packed in sea worthy and weather proof firm wooden box.
