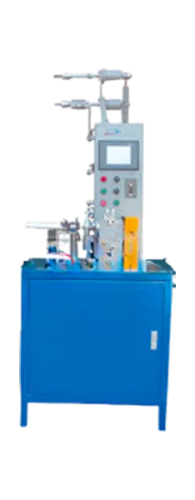

ZH-110A Winding Machine

PLC control, operated by touch screen

  • PLC control, operated by touch screen
  • count by coder, and measure resistance value automatically.
  • coiling and cutting the coils automatically
  • Can set the parameters like wire diameter
  • It can control the number of turns and with clean ends cut.
  • defective products reclaiming
Get Quote Now !
Download Spec Sheet
Facebook Linkedin Youtube
ZH-110A-Winding-Machine--zt-imageonline.co-9911638

DESCCRIPTION

SPECIFICATION

RELATED PRODUCTS

TECH SUPPORT

Detailed Product Description

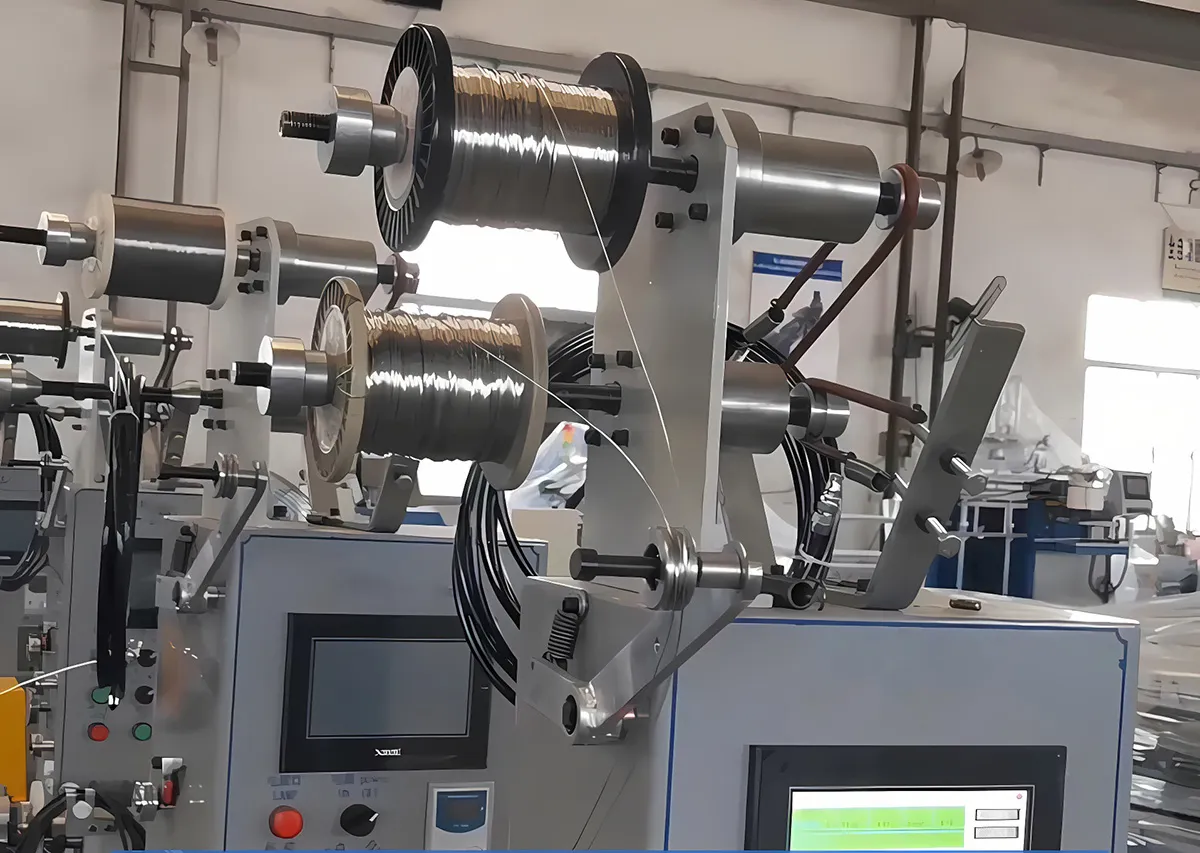

ZH Machinery ZH-110A Coiling machine for resistance wire is a special coiling equipment. The machine has the characteristics of small dimension, high accuracy, easy operation, stable performance and high production. It has touch screen and can input technical parameters into touch screen compared to the ZH-110 Coiling machine that doesn’t have this function.


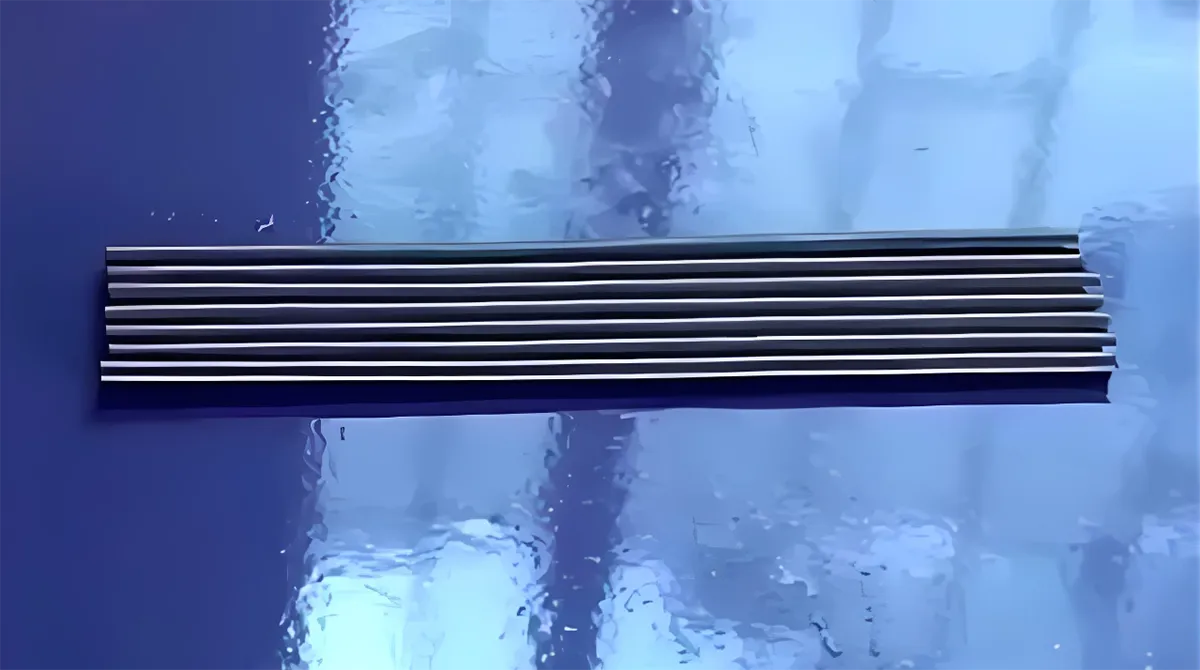

imgi98615185-imageonline.co-5641163
imgi109717273-imageonline.co-9732934

SPECIFICATON

Functions:

  1. PLC control, operated by touch screen, count by coder, and measure resistance value automatically.
  2. The inverter controls the shaft speed, coiling and cutting the coils automatically.
  3. Can set the parameters like wire diameter, Ohm/M, Ohm value in the touch screen.
  4. Cut by pneumatic cylinder, it can control the number of turns and with clean ends cut.

Main technical parameters:

  1.  Power supply: Single phase 220±10% 50Hz.
  2.  Shaft rotation speed: 0-2134RPM.
  3.  Plastic wheel rotation speed: 0-74RPM.
  4.  Plastic wheel hole ID: 14mm, outer dia100-200mm.
  5.  Collet inner hole: 6.0 +0.05+0.01.
  6.  Motor rate: spindle motor 370W/1340.
  7.  Plastic wheel motor: 60W/1400RPM.
  8.  Double roller motor: 120W/1400RPM.
  9.  Coil ID (mandrel diameter): 0.75mm-12.7mm.
  10. Wire diameter: 0.10mm-1.0mm.
  11. Packing size (L*W*H): 780*870*1930 (mm).
  12. Gross weight: 188kg.

Required information when ordering our ZH-110A Automatic coiling machine

*Mandrel sizes and resistance wire diameters accordingly.

*Single wire or tandem wires.

*Single plastic wheel or double plastic wheels.

*Electrical supply (for example, single phase 220v 50hz).

Notes: All the information above, which may be subject to change, is offered solely for your reference, and should not be taken as a warranty or representation for which we assume any legal responsibility.

parameter

Mandrel Size (mm) Wire Diameter (mm) Single Wire or Double Wires
1 0.25 Single Wire
1.2 0.12-0.5 Both
1.65 Below 0.45 Both
1.85 Below 0.6 Both
1.9 Below 0.75 Both
2.2 Below 0.75 Both
WARRANTY Machine for one year, electric parts for half a year, wearing parts are not included.
PAYMENT 50% advance payment, 50% before shipment.
DELIVERY TIME Normally in 60 days after getting advance payment and all the technical parameters we request.
But it depends on how many machines you wish to purchase.
PACKING
DETAILS 		Merchandise is packed in sea worthy and weather proof firm wooden box.
