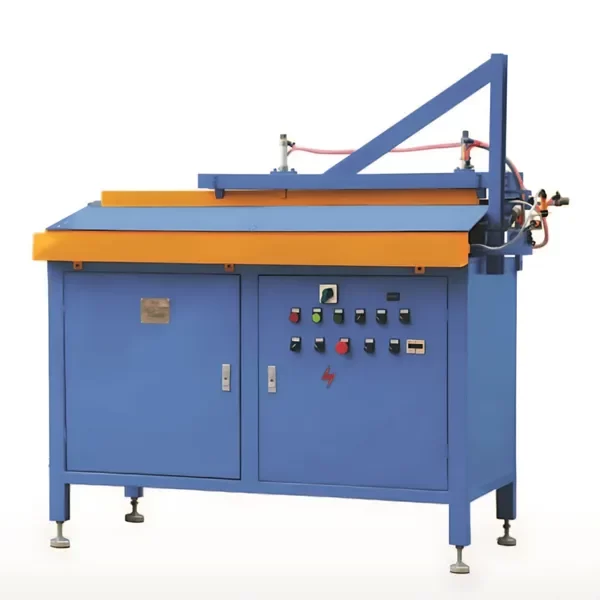

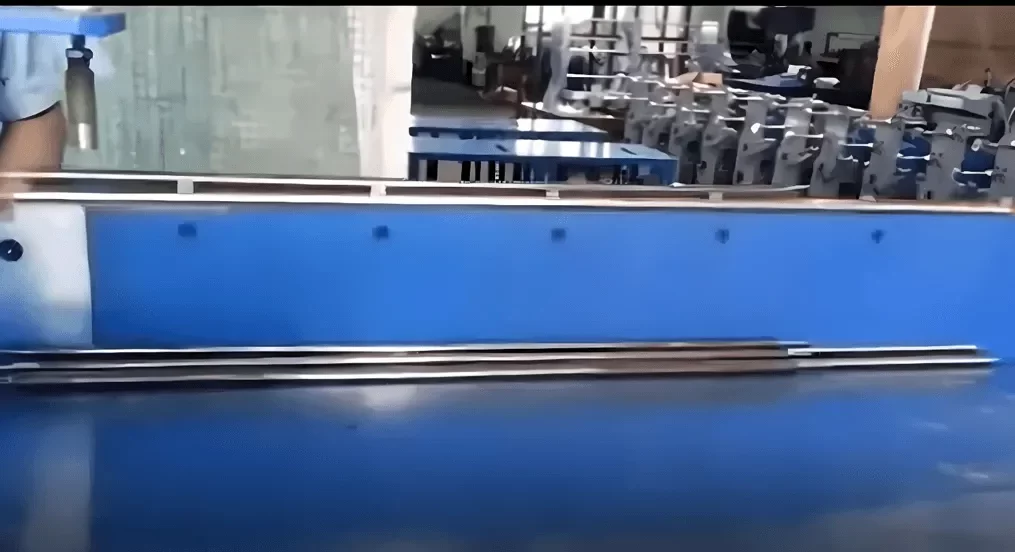

Zhenghe Intelligent ZH -107 Feeding and Testing Machine is a blend of high voltage testing and automatic feeding machine which is used to feeding tubular heating elements to the ZH-101 Rolling machine. It is characterized by easy operation, continuously working, automatic testing, automatic separating, no special skill or specially trained personnel is needed to operate this machine.
*Labor saving/efficient operation.
*Reliable and flexible feeding.
*Feeding by chain.
*Save tubes.
1. PLC control. It feeds the heating elements with a consistent space between them, this avoids risk for damage on reducing rolling mill.
2. Easy operation and no need for operator.
3. Equipped with a high testing device to sort out of defective elements before rolling automatically.
4. Feeding speed can be adjusted.
1. Power supply: Single phase 220V 50Hz 60W.
2. Air supply: 5-7kg/cm2.
3. Feeding speed: 5-15m/min.
4. Tube diameter: 6.5mm-21.0mm.
5. Tube length: 100mm-1500mm.
6. Efficiency: 11000pcs/8h (for 300mm electrical tubular heating elements).
7. Packing size (L*W*H): 1700*1000*1600(mm) (tube length 1.5meters).
8. Gross weight: 450kg.
*Max. element tube length.
*Tube diameters.
*Electrical supply (for example, single phase 220v 50hz).
| Mandrel Size (mm) | Wire Diameter (mm) | Single Wire or Double Wires |
|---|---|---|
| 1 | 0.25 | Single Wire |
| 1.2 | 0.12–0.5 | Both |
| 1.65 | Below 0.45 | Both |
| 1.85 | Below 0.6 | Both |
| 1.9 | Below 0.75 | Both |
| 2.2 | Below 0.75 | Both |
| WARRANTY | Machine for one year, electric parts for half a year, wearing parts are not included. |
| PAYMENT | 50% advance payment, 50% before shipment. |
| DELIVERY TIME |
Normally in 60 days after getting advance payment and all the technical parameters we request. But it depends on how many machines you wish to purchase. |
|
PACKING DETAILS |
Merchandise is packed in sea worthy and weather proof firm wooden box. |
