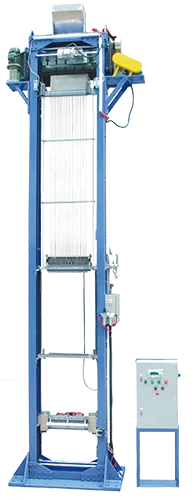

ZH-106A Mgo Powder Filling Machine

Two or three layers guide tubes.

  • Simple operation
  • Especially for long tube and big tube diameters
  • Different tube sizes filling in one machine are available.
  • Filling speed adjustable
  • Quick changes of tube length and terminal pin outside tube length
Get Quote Now !
Download Spec Sheet
Facebook Linkedin Youtube
imgi98646183-imageonline.co-3000106

DESCCRIPTION

SPECIFICATION

RELATED PRODUCTS

TECH SUPPORT

Detailed Product Description

ZH Machinery ZH-106A MgO Powder Filling Machines are specially designed to fill magnesium oxide powder inside of empty tube for tubular heating elements. Comparing with the ZH-105 Filling machine, the center guarantee of ZH-106A Filling machine is better. If you require high-quality heating elements, we suggest you get the ZH-106A Filling machine. The ZH-106A Filling machine is for high temperature, small granule MgO powder and the insulation is good. If you require withstand voltage around 1500-1800v, ZH-105 Filling machine can meet your requirement. If you require withstand voltage above 2000v, our ZH-106A Filling machine can meet your requirement.



* Simple operation.

*Automatic machine.

*Two or three layers guide tubes.

*Especially for long tube and big tube diameters.

*Different tube sizes filling in one machine are available.

*Filling speed adjustable.

*Quick changes of tube length and terminal pin outside tube length.

*Popular in Europe.



imgi119267642-imageonline.co-1454979
imgi128646201-imageonline.co-6014585
imgi128646201-imageonline.co-6014585

SPECIFICATON

Functions:

  1. PLC automatically controlled, human-computer interface, the oscillation frequency controlled by electron speed regulator.
  2. It adopts jet nozzle which assure almost zero MgO loss.
  3. Vibrator guarantees the powder density and the density could be above 2.20g/cm3.
  4. The filling tube moving speed controlled by frequency control.
  5. Big and small powder box design. Electronic adjustment of the exerted length of terminal pin.
  6. Indicate how to clear fault automatically.
  7. 12,18,24,36 and 48 position machines are available to satisfy customers’ production requirements.
  8. Tube diameters below 16mm, tube length below 6000mm.It can be custom-made.

Main technical parameters:

  1. Power supply: 220V, 50Hz.
  2. Rated power: 2.0KW.
  3. Air supply: 5-7kg/cm2.
  4. Efficiency: 6500pcs/8h (tube length 250mm).
  5. Feeding speed: 250-300/Min.
  6. Machine sizes:

Required information when ordering our ZH-106A MgO Powder Filling Machine

*Max. element tube length, outer and inner diameter of element tube.

*Max. outer diameter after welding coil and terminal pin.

*Electrical supply (for example,single phase 220v 50hz).

*If you prefer filling different diameters of element tube in one ZH-106A Tube Filling Machine, there are 3 different ways for your choice. First, when you only want to filling one diameter,please put the same length empty tube for other diameters which not filled to protect guide tubes and core rod sets. Second, take apart the guide tubes and core rod sets which are filled and then use plug or tissue to seal the MgO powder falling hole. Third, make separated MgO powder box, take apart the guide tubes and core rod sets for unfilled positions.

Notes: All the information above, which may be subject to change, is offered solely for your reference, and should not be taken as a warranty or representation for which we assume any legal responsibility.

parameter

Element tube length(M) Machine size(L*W*H) mm Packing Size(L*W*H) mm Gross Weight (KG) Net Weight (KG)
2.5 2000*650m*6900 6970*1950*900 1110 960
3 2000*650m*7900 8000*1950*900 1290 1140
3.5 2000*650m*8900 9030*1950*900 1470 1320
4 2000*650m*9900 10060*1950*900 1650 1500
4.5 2000*650m*10900 11090*1950*900 1830 1680
WARRANTY Machine for one year, electric parts for half a year, wearing parts are not included.
PAYMENT 50% advance payment, 50% before shipment.
DELIVERY TIME Normally in 60 days after getting advance payment and all the technical parameters we request.
But it depends on how many machines you wish to purchase.
PACKING
DETAILS 		Merchandise is packed in sea worthy and weather proof firm wooden box.
