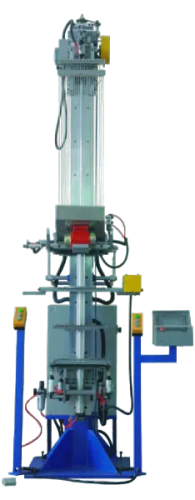

ZH-105 Mgo Powder Filling Machine

specially designed to fill magnesium oxide powder inside empty tube for tubular heating elements.

  • Automatic machine
  • Simple operation
  • One layer guide tube
  • Automation in line possible
  • Quick changes of tube length and terminal pin outside tube length
Get Quote Now !
Download Spec Sheet
Facebook Linkedin Youtube
ZH-105-Mgo-Powder-Filling-Machine-zu-imageonline.co-5015221

DESCCRIPTION

SPECIFICATION

RELATED PRODUCTS

TECH SUPPORT

Detailed Product Description

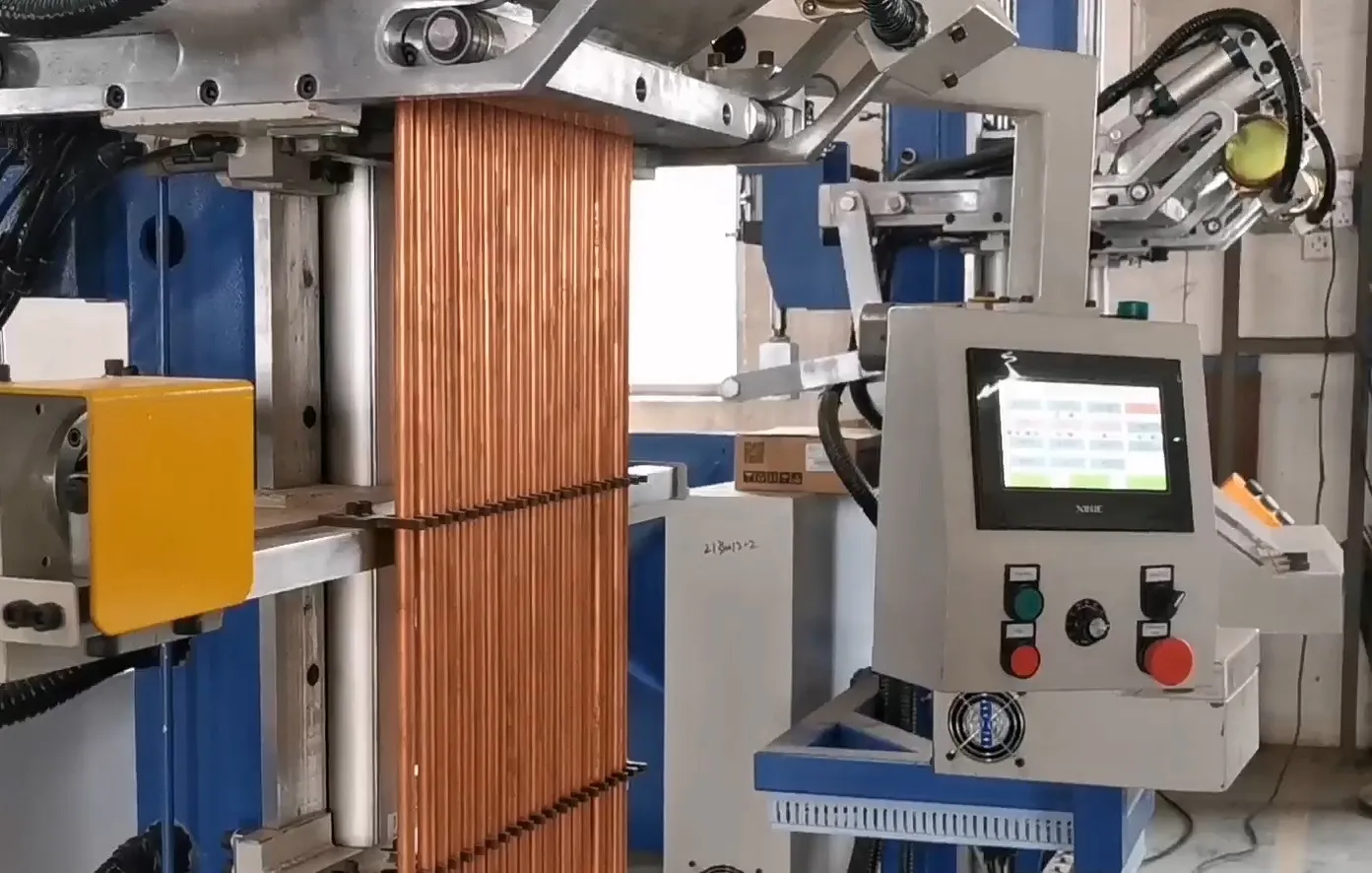

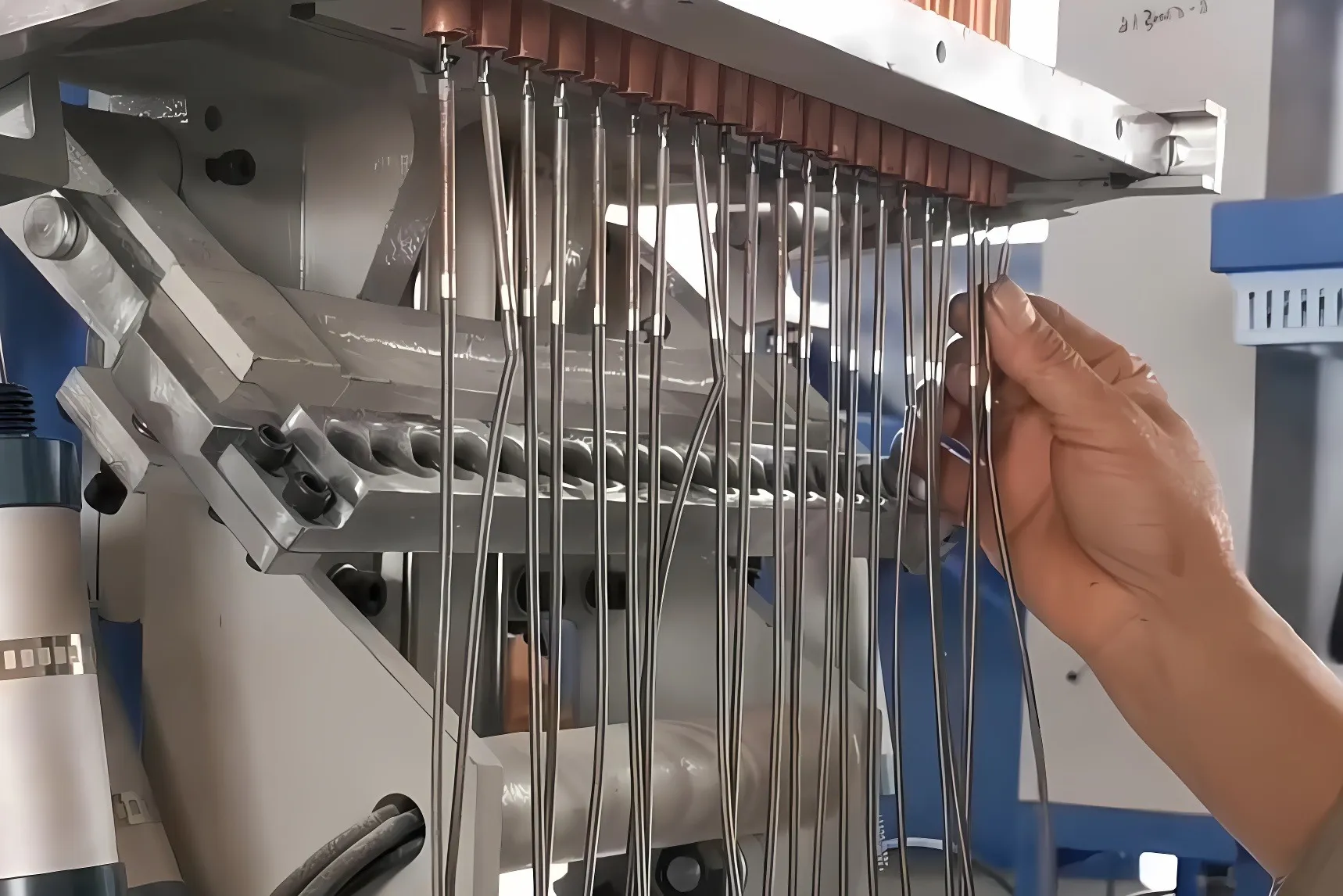

Zhenghe Machinery ZH-105 MgO Powder Filling Machines are specially designed to fill magnesium oxide powder inside empty tube for tubular heating elements. It can work with ZH-305 Tube ranking machine and ZH-303 Automatic upper plug and pin assembling machine.

*Simple operation.

*Automatic machine.

*One layer guide tube.

*Automation in line possible.

*Especially for short tube and small tube diameters.

*Different tube sizes filling in one machine are available.

*Filling speed adjustable.

*Quick changes of tube length and terminal pin outside tube length.

*Popular in Asia.

imgi168729354-imageonline.co-9569579
imgi109268568-imageonline.co-6242266

SPECIFICATON

Functions:

  1. PLC control, human-computer interface. Vibration frequency can be adjusted.
  2. Powder filling density above 2.17g/cm3. Almost zero MgO loss.
  3. Oscillation mode: Motor or electromagnetic.
  4. Tube diameter: below 16mm.
  5. Indicate how to clear fault automatically.
  6. 12, 18, 24, 36 positions are available.
  7. Filling speed: 250-350mm/min.
  8. Min. tube diameter: 5.5mm.

Main technical parameters:

  1. Power supply: Single phase 220V, 50Hz.
  2. Rated power: 1.5KW.
  3. Air supply: 5-7kg/cm2.
  4. Efficiency: 6500pcs/8h (tube length 250mm)
  5. It can fill 24pcs or 36pcs tubes at a time (below 10mm)
  6. Machine sizes:
  7.

Required information when ordering our ZH-105 MgO Powder Filling Machine

*Max. element tube length, outer and inner diameter of element tube.

*Max. outer diameter after welding coil and terminal pin.

*Electrical supply (for example,single phase 220v 50hz)

*If you prefer filling different diameters of element tube in one ZH-105 Automatic Filling Machine,there are 3 different ways for your choice. First,when you only want to filling one diameter, please put the same length empty tube for other diameters which will not filled to protect guide tubes and core rod sets. Second, take apart the guide tubes and core rod sets which will not filled and then use plug or tissue to seal the MgO powder falling hole. Third, make separated MgO powder box,take apart the guide tubes and core rod sets for unfilled positions.

Notes: All the information above, which may be subject to change, is offered solely for your reference, and should not be taken as a warranty or representation for which we assume any legal responsibility.

parameter

Element tube Length (M) Vibration System (PCS) Machine Size (L*W*H)mm Packing Size (L*W*H)mm Gross Weight (KG) Net Weight (KG)
1 1 3600*1200*1050 3300*1050*1050 650 500
1.5 1 4600*1200*1050 4500*1050*1050 730 580
2 2 5600*1200*1050 5800*1050*1050 810 660
2.5 2 6600*1200*1050 7100*1050*1050 890 740
3 3 7600*1200*1050 8200*1050*1050 970 820
WARRANTY Machine for one year, electric parts for half a year, wearing parts are not included.
PAYMENT 50% advance payment, 50% before shipment.
DELIVERY TIME Normally in 60 days after getting advance payment and all the technical parameters we request.
But it depends on how many machines you wish to purchase.
PACKING
DETAILS 		Merchandise is packed in sea worthy and weather proof firm wooden box.
