Zhenghe Intelligent ZH-102 Pipe welding machine is a special machine for making stainless steel tube. The machine uses inverter to control the welding speed. It can adjust the speed when welding different strip thicknesses. It also can cool and straighten the tube after welding. The machine has the characteristics of high production with low waste and cost.

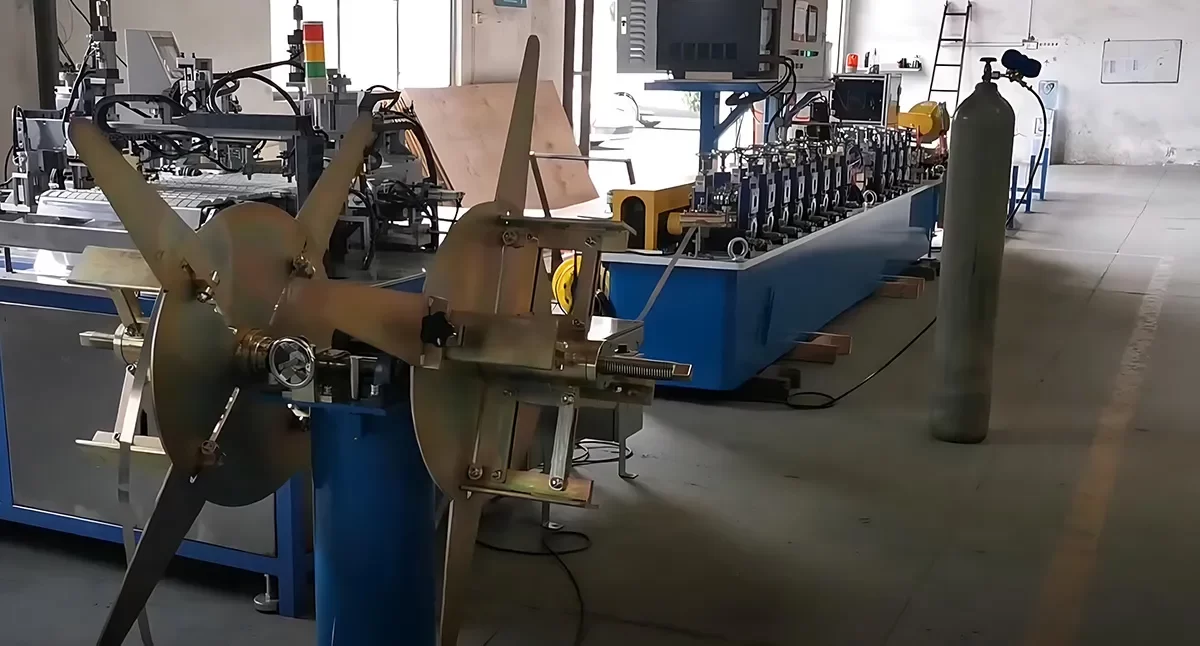

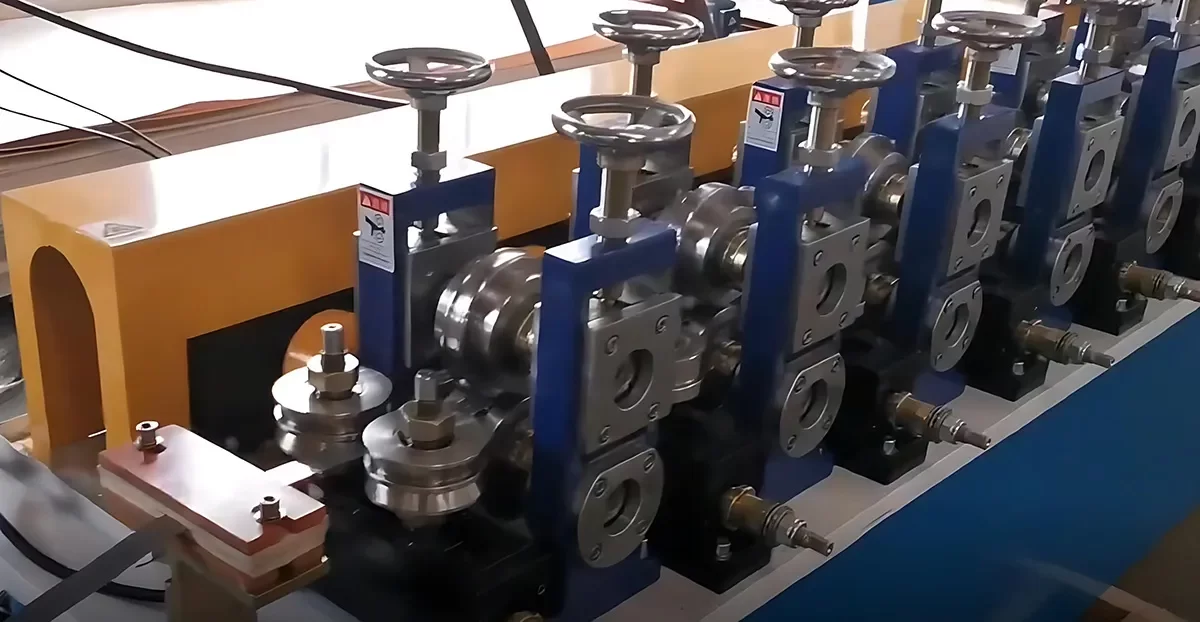

It has several procedures: decoiler, formation, argon welding and straightening. The production line of tube making machine consists of decoiler, welding device and machine body. The machine body consists of feeding guiding roller, roller bracket, motor, electric system, cooling system and welding device.
*Can be equipped with cutting machine, feeder and clean box and eddy current tester.
*One person can operate several machines at the same time.
*Need 2-3 hours for changing 1 set rollers.
1. The frame of machine is made of excellent steel plate and of stable structure.
2. PLC automatically controlled, human-computer interface.
3. Control the speed by Mitsubishi transduction. The tube making speed can be adjusted.
4. The machine will alarm automatically in case of any error, abnormity or lack of material.
1.Power supply: Tri-phase 380V 50Hz.
2.Rated power: 16.5KW, Whole set machines power: 30KW.
3.Water supply: 190liters/hr.
4.Argon supply: 400-700liters/hr.
5.Hydrogen supply: 20-350liters/hr.
6.Applicable tube diameter: 4mm-16mm (over this range can be custom-made).
7.Applicable tube thickness: 0.17mm-1.0mm.
8.Tube making speed: 6-18m/min.
9.Machine body size (L*W*H): 4000*1100*1700 (mm)
10.Whole set machines sizes (L*W*H): 20000*1500*1800mm
11.Weight: 2000kg
*Tube diameters (after reduction) and tube thickness.
*Max.element length.
*Type of plugs.
*Tube material.
*Placed in line with ZH-101 Roll reducing mill or used separately?
*Electrical supply(for example,single phase 220v 50hz).
*To be supplied by customer before delivery: About 50 pieces heater for final adjustments.
| Element Tube Length | Machine Size (mm) | Machine Size (mm) | Gross Weight (KG) | Net Weight (KG) |
|---|---|---|---|---|
| 2m | 3550*1000*1550 | 3750*1200*1750 | 980 | 850 |
| 3m | 4600*1000*1550 | 4800*1200*1750 | 1050 | 920 |
| 4m | 6000*1000*1550 | 4800*1200*1750 | 1120 | 990 |
| WARRANTY | Machine for one year, electric parts for half a year, wearing parts are not included. |
| PAYMENT | 50% advance payment, 50% before shipment. |
| DELIVERY TIME |
Normally in 60 days after getting advance payment and all the technical parameters we request. But it depends on how many machines you wish to purchase. |
|
PACKING DETAILS |
Merchandise is packed in sea worthy and weather proof firm wooden box. |
