ZH-101 Rolling Mill

Small volume, silent operation and stable performance

  • Patent product
  • Quick change between different tube sizes.
  • Automation in line possible
  • High production capacity
  • Small volume, silent operation and stable performance
  • No pounding or vibration, causing off-center coils
Get Quote Now !
Download Spec Sheet
Facebook Linkedin Youtube
imgi59717210-imageonline.co-7264263

DESCCRIPTION

SPECIFICATION

RELATED PRODUCTS

TECH SUPPORT

Detailed Product Description

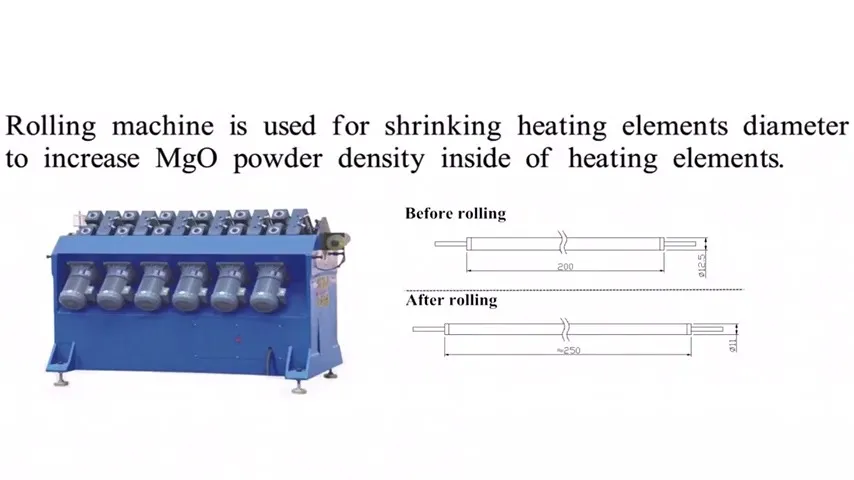

ZH Machinery Rolling Mills are specially designed to reduce round and metal sheathed tubular heating elements to increase the MgO powder density. It can guarantee the circularity ratio of 1:300 and the degree of the flatness of +/-0.05mm. ZH-101 Tube rolling machine can be used together with ZH-312 Feeding and testing machine and can be equipped with tube marking device.

imgi108646065-imageonline.co-5324256

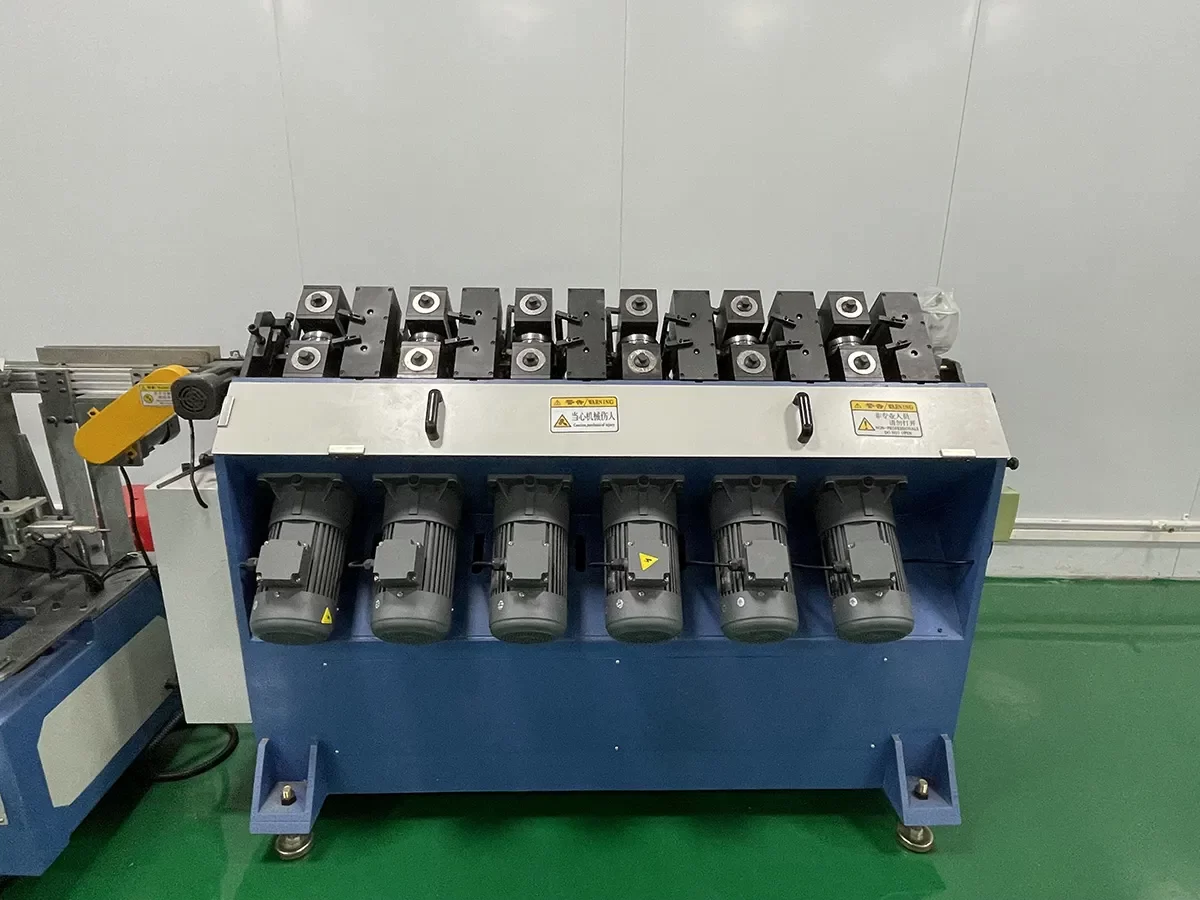

imgi119244639-imageonline.co-1522909

SPECIFICATON

Functions:

  1. The frame of the machine is made out of pig iron casting.
  2. We have two types of motor for your choice, non-uniform speed (different speed) and uniform speed. The former makes the ductility of the tube better, while the latter applies to the tube with large diameter.
  3. When the tube specifications change, we only need to replace a set of rollers. The rollers can be classified into two categories: high speed steel roller and tungsten carbide roller. High speed steel roller can reduce approximately 3 hundred thousand meters length heaters (8H/Day and 5Days/Week),  while tungsten carbide roller can reduce approximately 1 million meters length heaters(8H/Day and 5Days/Week)
  4. This machine is of small size, low noise and convenient adjustments.
  5. Applicable tube: Copper, iron, aluminum, stainless steel, etc.

Main technical parameters:

  1. Tube diameter after compressing: 5.2mm-19.0mm.
  2. The max. diameter before compressing: 21mm.
  3. The min. length of tube:110mm.
  4. Speed: 18m/min.

Required information when ordering our ZH-101 Rolling machine

*Initial and final tube diameter (wall thickness).
*Tube material.
*Electrical supply (for example,sinAgle phase 220v 50hz).
*Tungsten carbide roller or high-speed steel roller.
*To be supplied by customer before delivery: at least 50 pieces of 350mm long heater for final adjustments.

Notes: Allthe information above, which may be subject to change, is offered solely for your reference, and should not be taken as awarranty or representation for which we assume any legal responsibility.

parameter

Model Power Supply Numbers of Motors Number of Rollers(pcs) Packing Size(L*W*H)mm Gross Weight(KG)
ZH-101-08 3 phase 380v 50hz 6.1kw
(can be custom-made) 		8 stations 16 1350*1050*1500 1350
ZH-101-12 3 phase 380v 50hz 9.3kw
(can be custom-made) 		12 stations 24 1800*1050*1500 1650
ZH-101-16 3 phase 380v 50hz 12.3kw
(can be custom-made) 		16 stations 32 2100*1050*1500 1950
WARRANTY Machine for one year, electric parts for half a year, wearing parts are not included.
PAYMENT 50% advance payment, 50% before shipment.
DELIVERY TIME Normally in 60 days after getting advance payment and all the technical parameters we request.
But it depends on how many machines you wish to purchase.
PACKING
DETAILS 		Merchandise is packed in sea worthy and weather proof firm wooden box.
