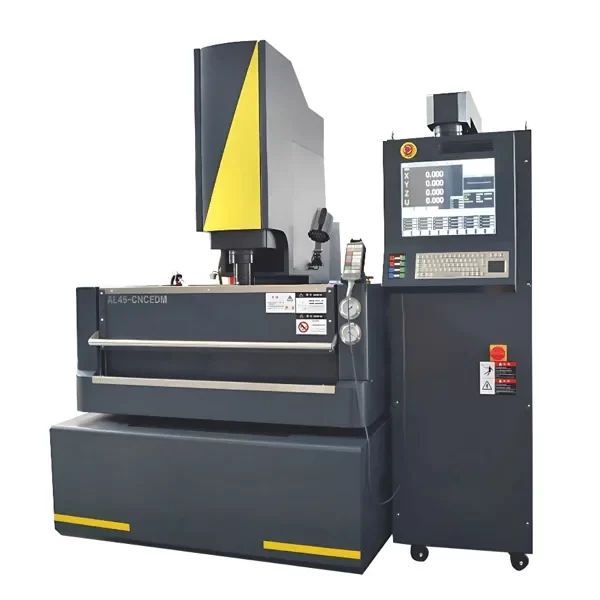

Intelligent AL45 Mirror Sparking Machine Advantages: easy to operate, large-area mirror machining (oversized mirror machining) a powerful pool of experts to really solve the operation of the cumbersome, novice can be oversized mirror machining can be competing with imported equipment!
Intelligent AL45 Mirror Sparking Machine Product Description: Table Size: 700 * 400 (mm) processing fluid tank internal dimensions (L * W * H): 1000 * 600 * 380 (mm) X, Y, Z-axis travel: 450 * 350 * 300 (mm)
1. It is automatic skinning, plug removing, pin cutting, MgO powder digging.
2. Besides, new functions like pin chamfering, straight pipe marking, and so on can also be added.
3. It also can be custom-made according to different clients’ requirements.
1. Power supply: triphase 380V±10%/50Hz.
2. Power: 4.5KW.
3. Air supply:5-7kgf/cm2.
4. Applicable tube length: 300～1200mm.
5. Applicable tube diameter: Φ6.6-Φ8 (over this range can be custom-made).
6. Applicable termina
*Tube diameters (after reduction) and tube thickness.
*Minimum and maximum element tube length.
*Tube material.
*Specific terminal pin diameters and pin outside tube end length after turning.
*Specific pin outside tube end length after rolling.
*MgO powder digging length.
*Electrical supply (for example,single phase 220v 50hz).
*To be supplied by customer before delivery: About 50 pieces heater for final adjustments.
| AL45 Intelligent Mirror Sparking Machine Parameter List | |
|---|---|
| Machine tool mainframe model | AL45 |
| Table size (L x W) | 700*400mm |
| Internal dimensions of the processing tank (L x W x H) | 1000*6000*380mm |
| X, Y, Z axis travel | 450*350*300mm |
| Maximum electrode weight | 40kg |
| Maximum working weight | 500kg |
| Minimum ~ maximum distance of electrode head | 140-440mm |
| Position accuracy | 5µm / 100µm |
| Repeat Positioning Accuracy | 2µm |
| Machine weight approx. | 2200kg |
| Floor space size (L x W x H) | 2400*2200*2300mm |
| Process fluid filtration method | Exchangeable Paper Core Filter |
| CNC Pulse Power Supply Unit | A1-50 |
| Maximum processing current | 50A |
| Total Input Power | 10kw |
| WARRANTY | Machine for one year, electric parts for half a year, wearing parts are not included. |
| PAYMENT | 50% advance payment, 50% before shipment. |
| DELIVERY TIME |
Normally in 60 days after getting advance payment and all the technical parameters we request. But it depends on how many machines you wish to purchase. |
|
PACKING DETAILS |
Merchandise is packed in sea worthy and weather proof firm wooden box. |
