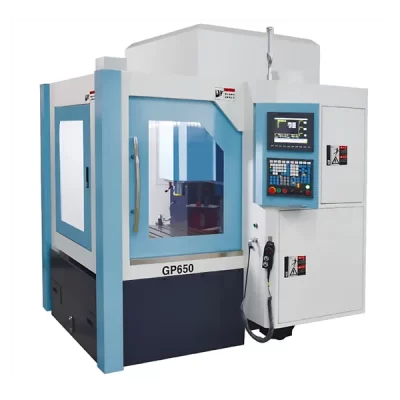

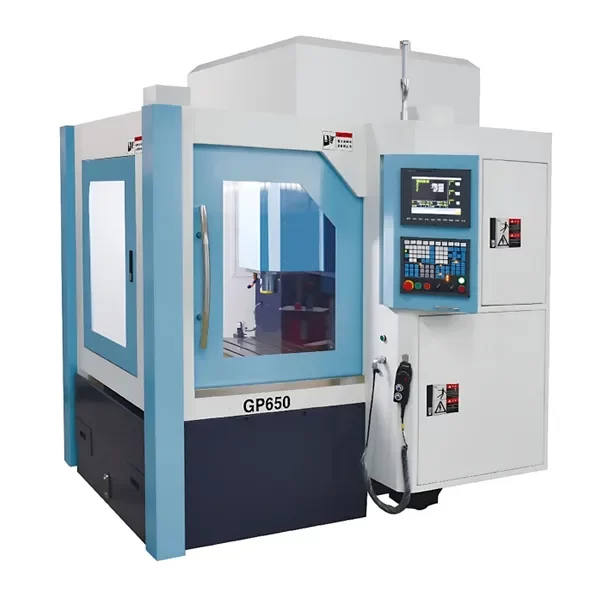

1. CNC engraving and milling machine uses small tools, high-power and high-speed spindle motors.
2. The machine tool adopts a unique integrated technology of the crossbeam and the bed. The gantry-type high-rigidity structure ensures the long-term high precision and service life of the machine, and has strong seismic resistance.
3. The three axes adopt imported high-precision linear guides and ball screws, which are wear-resistant, have a small friction coefficient, have high positioning accuracy, flexibility and stable movement.
1. It is automatic skinning, plug removing, pin cutting, MgO powder digging.
2. Besides, new functions like pin chamfering, straight pipe marking, and so on can also be added.
3. It also can be custom-made according to different clients’ requirements.
1. Power supply: triphase 380V±10%/50Hz.
2. Power: 4.5KW.
3. Air supply:5-7kgf/cm2.
4. Applicable tube length: 300～1200mm.
5. Applicable tube diameter: Φ6.6-Φ8 (over this range can be custom-made).
6. Applicable termina
*Tube diameters (after reduction) and tube thickness.
*Minimum and maximum element tube length.
*Tube material.
*Specific terminal pin diameters and pin outside tube end length after turning.
*Specific pin outside tube end length after rolling.
*MgO powder digging length.
*Electrical supply (for example,single phase 220v 50hz).
*To be supplied by customer before delivery: About 50 pieces heater for final adjustments.
| Items | ZH-GP650 | ZH-GP860 |
|---|---|---|
| Working distance (X/Y/Z axis) | 600/500/250mm | 780/680/330mm |
| Distance from spindle end face to workbench surface | 150–450mm | 150–480mm |
| Gantry width | 770mm | 770mm |
| Workbench Size | 600*500mm | 800*600mm |
| Max. load | 300kg | 400kg |
| T-slot (Width * Slot * Pitch) | 14T*3*125mm | 14T*3*125mm |
| Spindle Power | 5.5KW | 5.5KW |
| Spindle Speed | 24000rpm | 24000rpm |
| Spindle Cooling | Oil cooling | Oil cooling |
| Max. movement speed | 15m/min | 15m/min |
| Max. processing speed | 8m/min | 8m/min |
| Lubrication system | Fully automatic lubrication system | Fully automatic lubrication system |
| Drive system | Yaskawa, Japan | Yaskawa, Japan |
| System model | Taiwan SYNTEC / Fagor / Mitsubishi | Taiwan SYNTEC / Fagor / Mitsubishi |
| Located precision | +0.005/300mm | +0.005/300mm |
| Repeat located precision | +0.003mm | +0.003mm |
| Machine size | 1900*1730*2100mm | 1900*2100*2200mm |
| Machine weight | >2800kg | >3200kg |
| WARRANTY | Machine for one year, electric parts for half a year, wearing parts are not included. |
| PAYMENT | 50% advance payment, 50% before shipment. |
| DELIVERY TIME |
Normally in 60 days after getting advance payment and all the technical parameters we request. But it depends on how many machines you wish to purchase. |
|
PACKING DETAILS |
Merchandise is packed in sea worthy and weather proof firm wooden box. |
